Engine – mechanical (V6)Valve disassembly · page 2 of 2

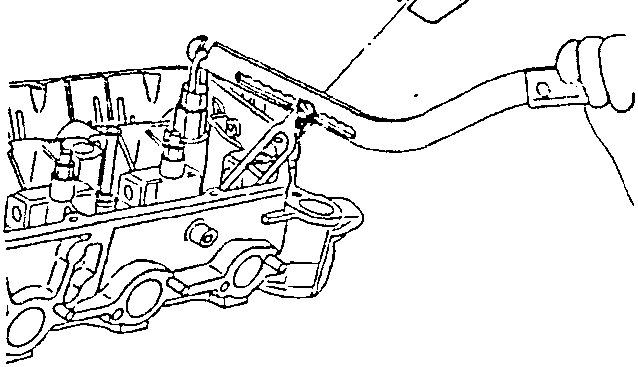

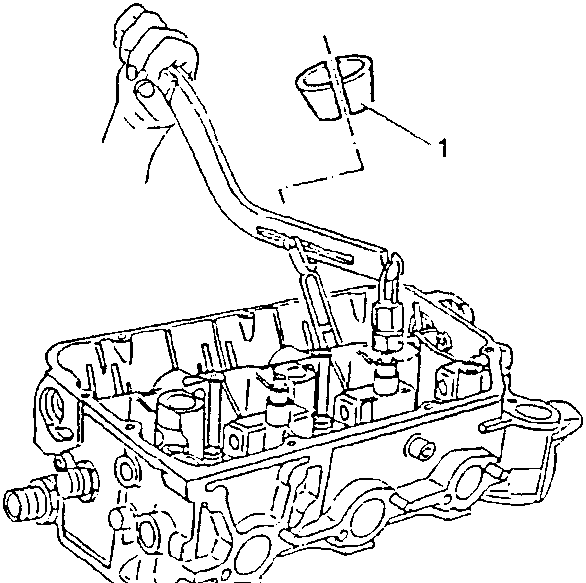

1. Remove the intake and exhaust valve cotters.

1. Remove the upper caps.

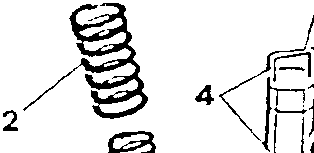

2. Remove the outer springs.
3. Remove the inner springs.

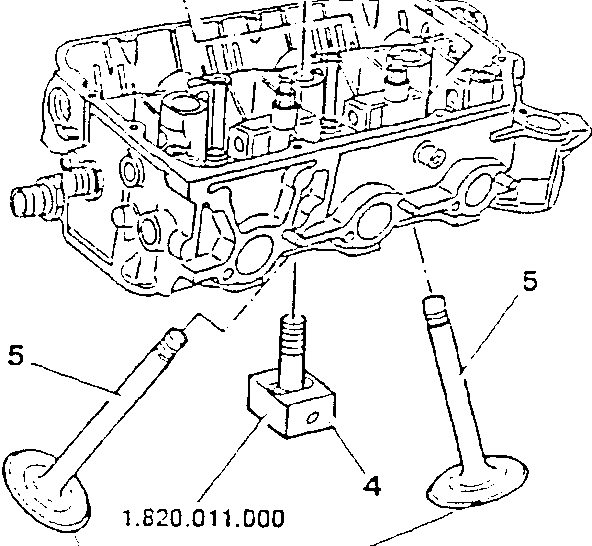

4. Remove tools N° 1.820.049.000 (A.2.0359) with N° 1.821.124.000 (A.3.0522) and N° 1.820.011.000 (A.2.0192).
5. Remove the two valves (intake and exhaust).

NOTE: Operate on the remaining cylinder heads following the same procedure and using the same tools.
