Engine – mechanical (V6)Replacing valve guides · page 2 of 2

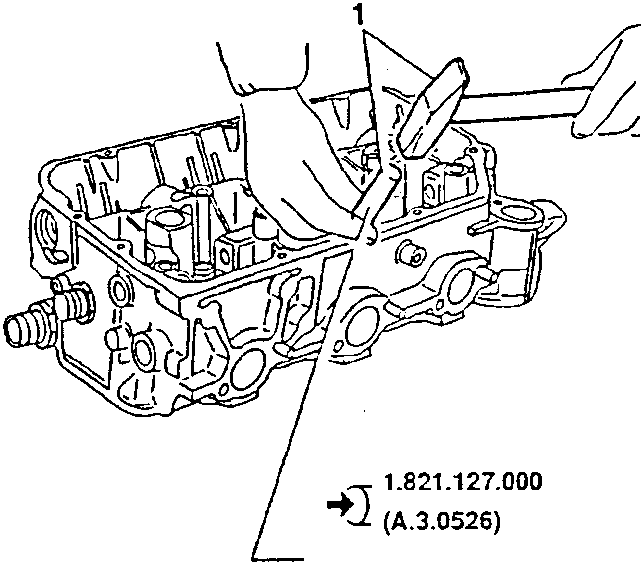

- Insert the new valve guides using the special inserting tools which also ensure correct protrusion values.

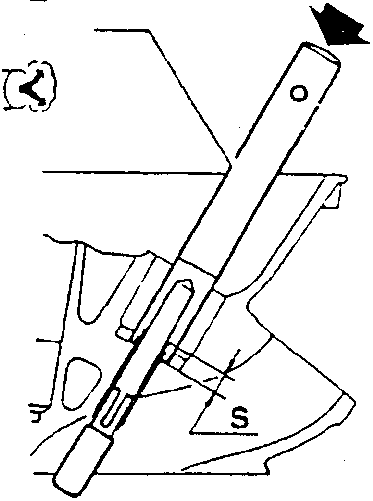

| Valve guide protrusion | |
|---|---|
| intake and exhaust | 10.2 to 10.6 mm |
- 1.821.127.000 (A.3.0526)
- 1.821.128.000 (A.3.0527)

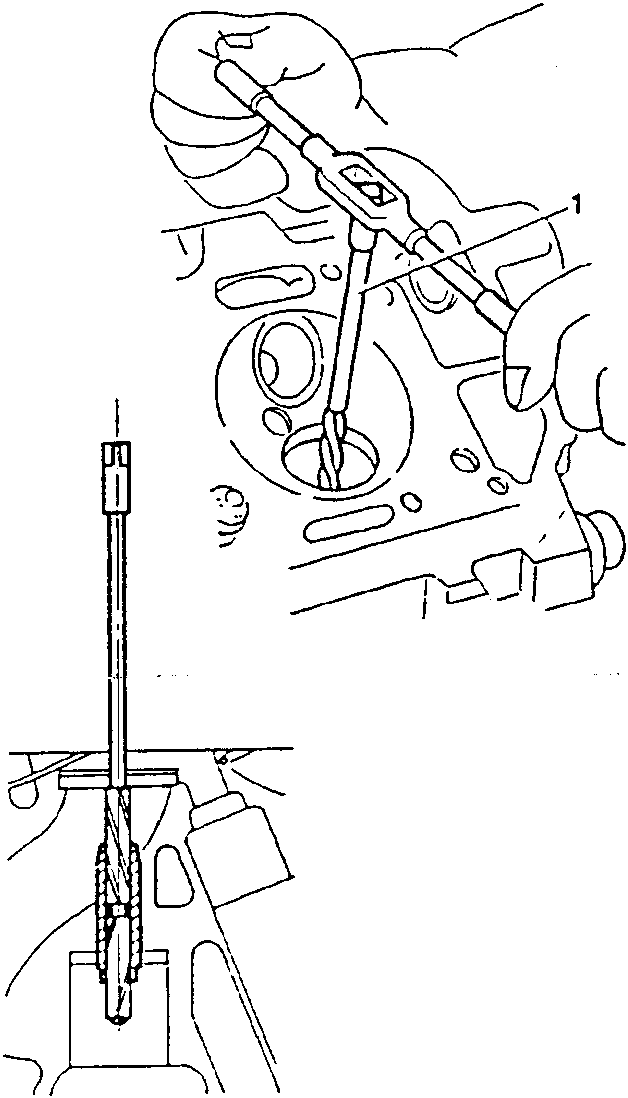

- Ream the new valve guides (intake and exhaust) using a reamer to bring the holes to the prescribed diameter.
| Internal diameter of the valve guide | |
|---|---|
| intake and exhaust | 9.000 to 9.015 mm |
