Valve seat turning

• Check valves for nicks, burning or noticeable traces or scoring with the corresponding seatings on the cylinder heads; replace vales if necessary.

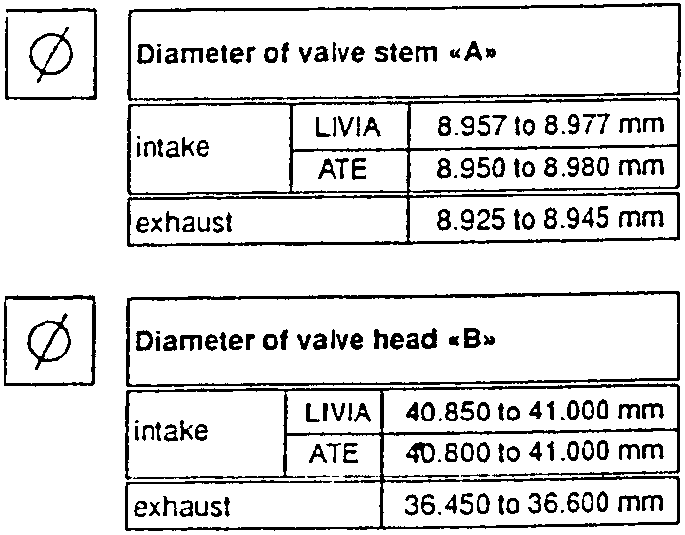

• If tha valves are in good condition proceed to a dimensional check of the stem and head diameters which should be within the prescribed limits.

NOTE: If the valves are found to be "burned", check that the springs are operating properly and check the valve clearance.

VALVE SEAT TURNING

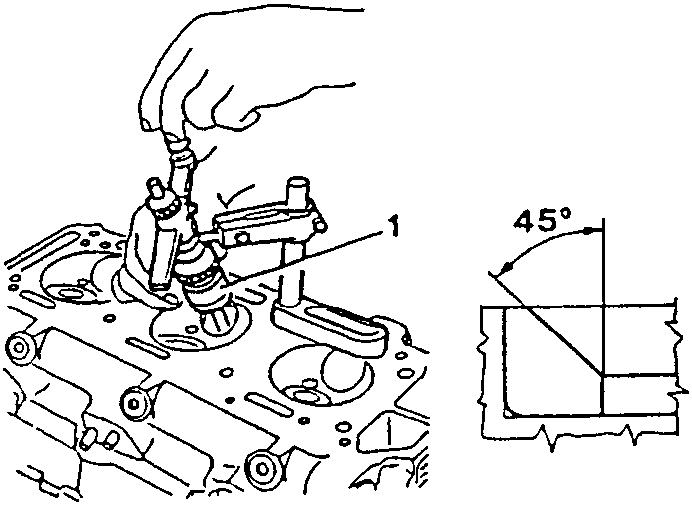

1. If necessary carry out valve seat turning using a suitable tool.

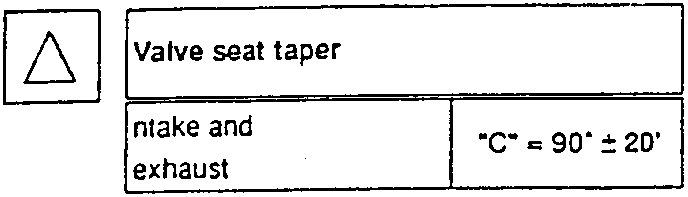

NOTE: Taper "C" can be obtained by positioning the hand lathe tool at an angle of 45°.
