Removal and refitting

REMOVAL AND REFITTING

• Disconnect the negative lead (-) from the battery.
• Open the bonnet.

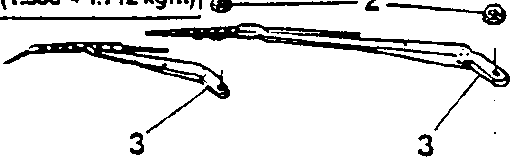

1. Remove the two caps covering the nuts securing the windscreen wiper arms.
2. Unscrew the two nuts securing the windscreen wiper arms to the wiper device.
3. Remove the two windscreen wiper arms.

NOTE: To facilitate this operation, momentarily close the bonnet.

1. Unscrew the two screws securing the side moulding.
2. Remove the side moulding.
3. - Repeat the procedure for the opposite moulding.

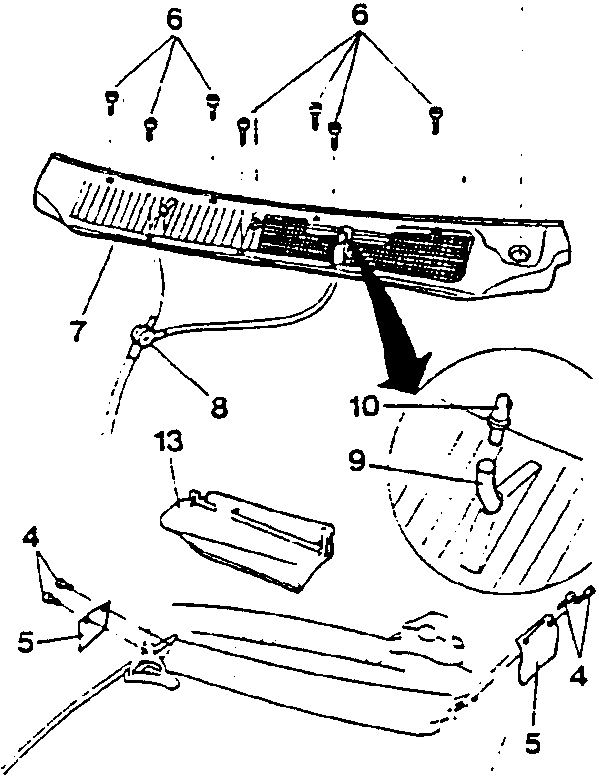

4. Unscrew the seven screws securing the central air vent moulding.
5. Move the central air intake vent.
6. Disconnect the three-way connection from the windscreen washer fluid delivery hose, remove the moulding and take it to a bench.

On the bench:

1. Disconnect the jet delivery hoses from the five seatings located on the moulding.
2. Pull the two jets from the moulding and disconnect them from the hoses.

On the vehicle:

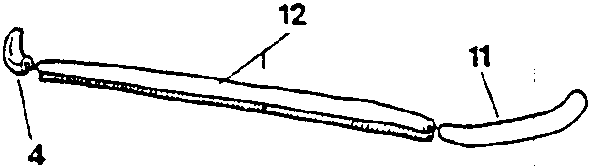

1. Remove the lateral seals.
2. Remove the central seal.
3. Remove the leaf guard.

To install, reverse the procedure followed for removal observing the following:

• During refitting, tighten the screws securing the windscreen wiper arms to the prescribed torque.

13.6 ÷ 16.8 Nm
1.386 ÷ 1.712 kgm
