Removal

REMOVAL

• Disconnect the negative lead (-) from the battery.
• Remove Front pillar trim (see: GR. 66 - FRONT PILLAR TRIM).
• Remove the sun visors and the front courtesy light (see: GR. 66 - ROOF PANEL).

NOTE: Protect the roof panel in order to avoid damaging or dirtying it.

• Remove the bonnet (see: GR. 56 - BONNET).
• Remove the air intake mouldings (see: AIR INTAKE MOULDING).

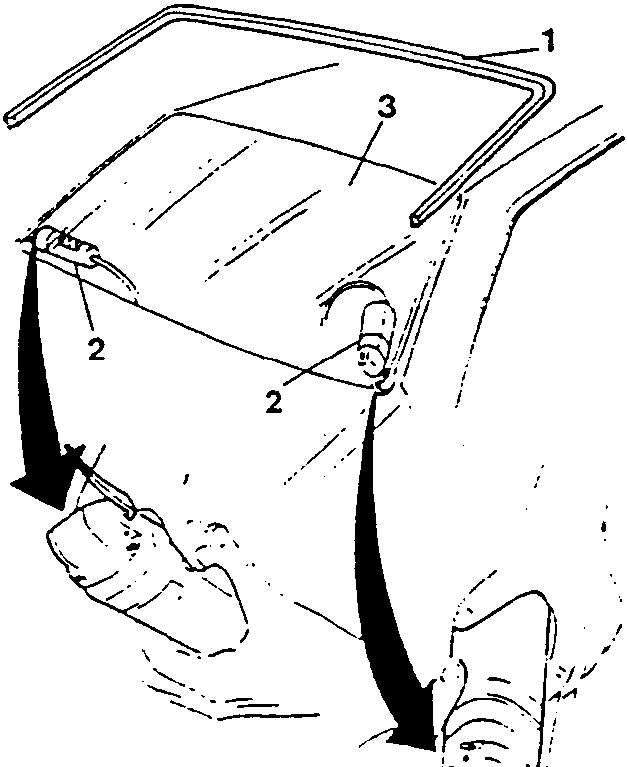

1. Remove the finishing strip.
2. Using electric shears, cut the glue around the perimeter of the windscreen using the blades as indicated in the diagram.
3. Remove the windscreen.

REFITTING

NOTE: When refitting the windscreen remove the shaped sections and the residues of bonding agent from the edge of the glass.

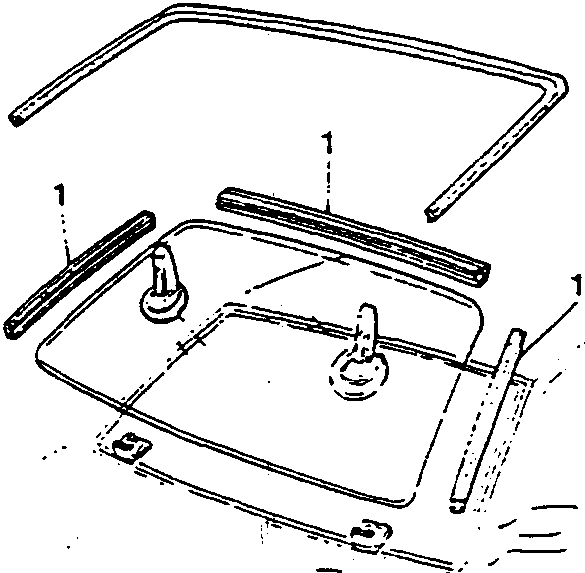

1. Apply the upper and side shaped sections to the windscreen.
   • Clean the edges of the glass and of the shaped sections using a suitable degreaser.
   • Leave to dry.
   • After degreasing, apply a suitable primer.
   • Leave to dry.
   • Smooth the residues of glue around the perimeter of the windscreen frame and wipe off with a dry cloth or compressed air.
2. When refitting the windscreen, apply the bonding agent to the glass in a band approximately 10 mm in width around the inside of the shaped sections and along the lower edge of the glass.
