Supplementary indications regarding refitting

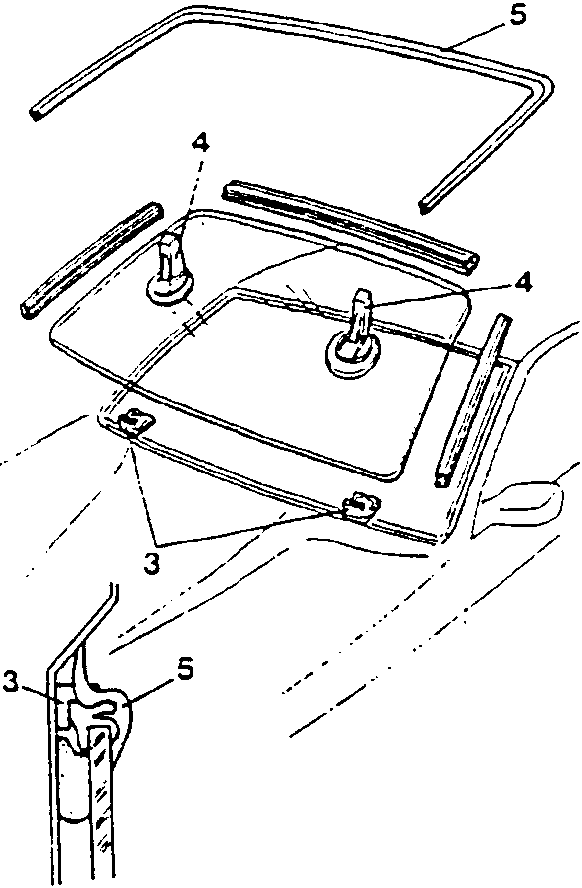

3. Position the four windscreen centering adhesive spacers.
4. Using the sucker pads, position the windscreen in the frame.

• Apply a light, uniform pressure around the edge of the windscreen.
• Leave the bonding agent to dry completely.

5. Refit the lower finishing strip.

• Refit all previously removed components.
• Connect the negative cable (-) to the battery.

SUPPLEMENTARY INDICATIONS REGARDING REFITTING

• For components and/or parts dealt with in other pages of this or other groups, refer to the related procedures and indications (see: GR. 66 - FRONT PILLAR TRIM; GR. 66 - ROOF PANEL; GR. 56 - BONNET, AIR INTAKE MOULDING).

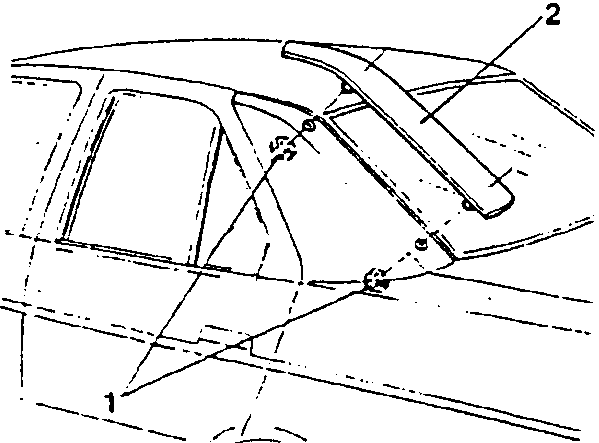

REAR PILLAR TRIM

REMOVAL AND REFITTING

• Remove the rear pillar trim (see: GR. 66 - REAR PILLAR TRIM).

1. Operating inside the vehicle, unscrew the two nuts securing the pillar trim.
2. Remove the pillar trim.

To install, reverse the procedure followed for removal.
