Rear windscreen › Removal
External trimRemoval

REMOVAL

  • Disconnect the negative lead (-) from the battery.
  • Remove the rear pillar trim (see: GR. 66 - REAR PILLAR TRIM)
  • Remove the passenger grab handles (see: GR. 66 - ROOF PANEL).
  1. Unscrew the three rear screws securing the roof panel to the courtesy light and lower the roof panel.

NOTE: Protect the roof panel in order to avoid damaging or dirtying it.

  1. Disconnect the heated rear window connector.
  2. Remove the boot lid (see: GR. 56 - LUGGAGE COMPARTMENT).
  3. Remove the rear pillar trim (see: REAR PILLAR TRIM).
  1. Remove finishing strip.
  1. Using electric shears, cut the glue around the perimeter of the windscreen using the blades as indicated in the diagram.
  1. Remove the rear windscreen.

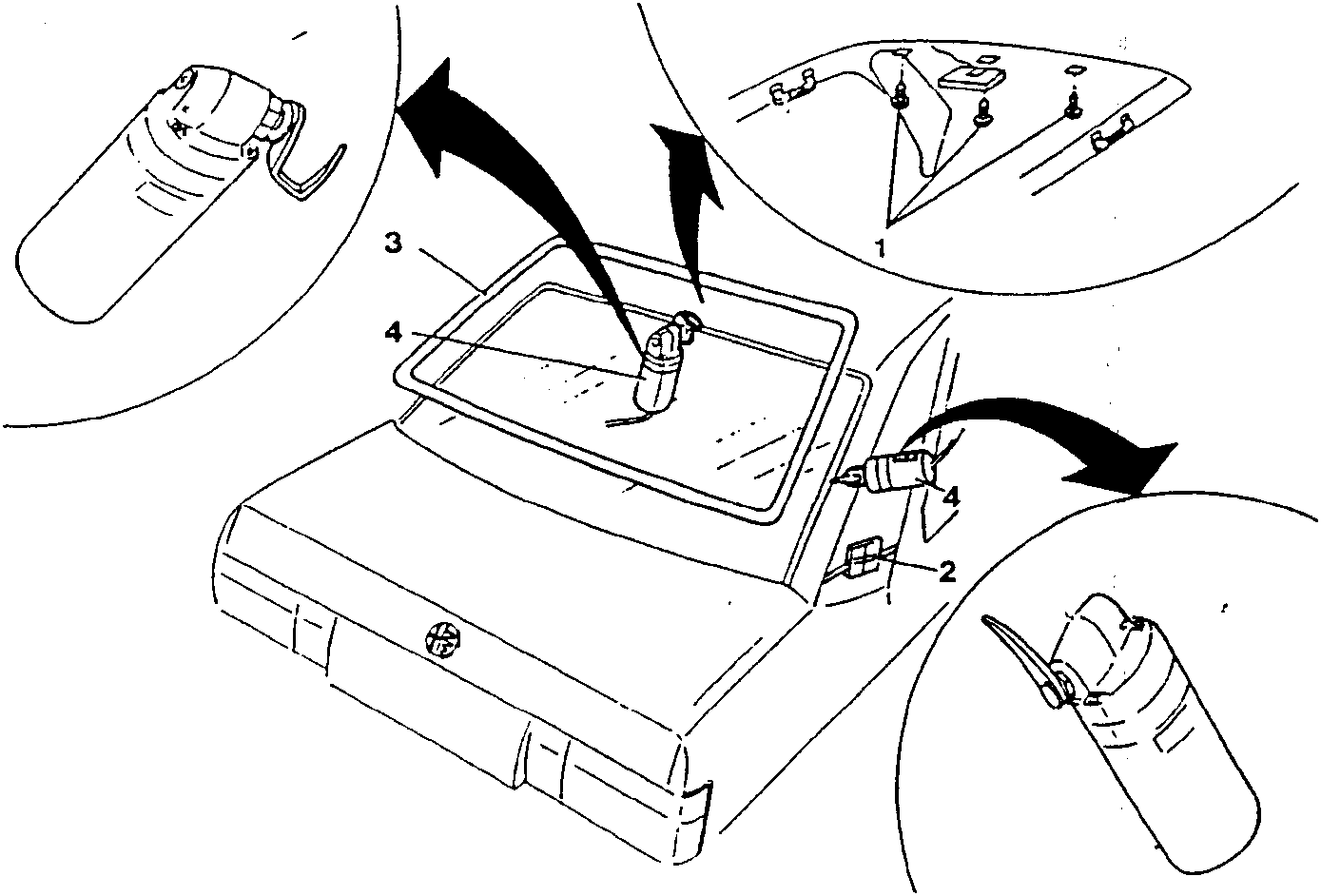

Diagram showing removal of rear windscreen with arrows indicating direction of movement and numbered parts 1, 2, 3, 4.
  1. Part 1
  2. Part 2
  3. Part 3
  4. Part 4
