Sunroof control relay

SUNROOF CONTROL RELAY

REMOVAL AND REFITTING

NOTE: Before removing the sunroof, ensure that hands are clean.

• Disconnect the negative lead (-) from the battery.
• Remove the sunroof motor (see: SUNROOF ELECTRIC MOTOR).

Operating from the driver’s side:

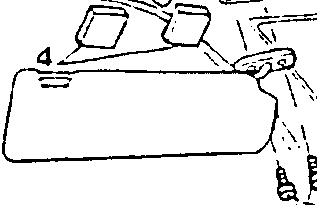

1. Unscrew the two screws securing the right-hand sun visor and remove the visor.
2. Disengage the cover from the screws of the hook securing the right-hand sun visor.
3. Unscrew the screw securing the hook and remove.
4. Remove the screw covers on the driver’s side.
5. Unscrew the two screws securing the roof panel on the driver’s side.

• Remove the front pillar trim (see: GR. 66 - FRONT PILLAR TRIM).

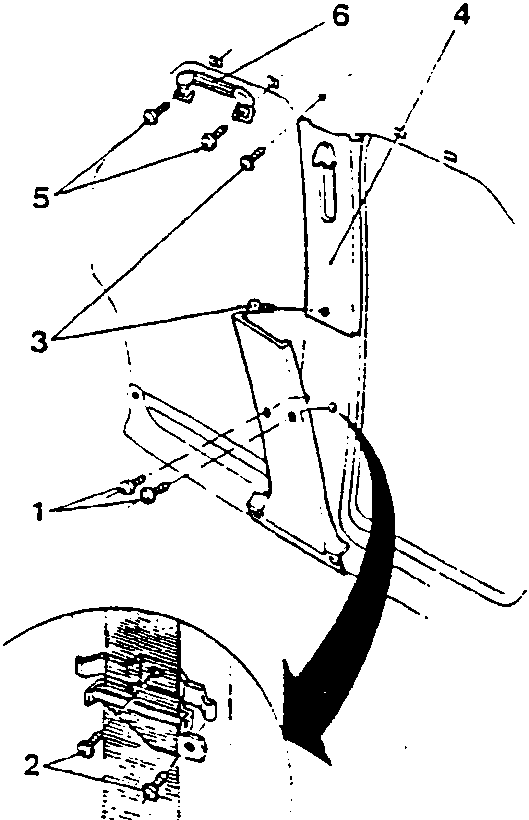

Operating from the passenger’s side:

1. Unscrew the screws securing the central pillar lower trim and disengage it from the retaining clip.
2. Unscrew the two screws securing the seat belt bracket to the left-hand central pillar and lower the clip.
3. Unscrew the screws securing the central pillar upper trim.
4. Lower the upper part of the central pillar trim.
5. Unscrew the two screws securing the rear left-hand passenger grab handle.
6. Remove the rear handle.
