Removal and refitting

REMOVAL AND REFITTING

NOTE: In the event of the motor malfunctioning, it is possible to move the roof to the desired position by manually activating the motor (see: EMERGENCY MANUAL ACTIVATION OF THE ELECTRIC SUNROOF).

• Disconnect the negative lead (-) from the battery
• Move the sunroof to the closed position so that it is flush with the surface of the roof.
• Remove the front courtesy light (see: GR. 66 - FRONT COURTESY LIGHT).

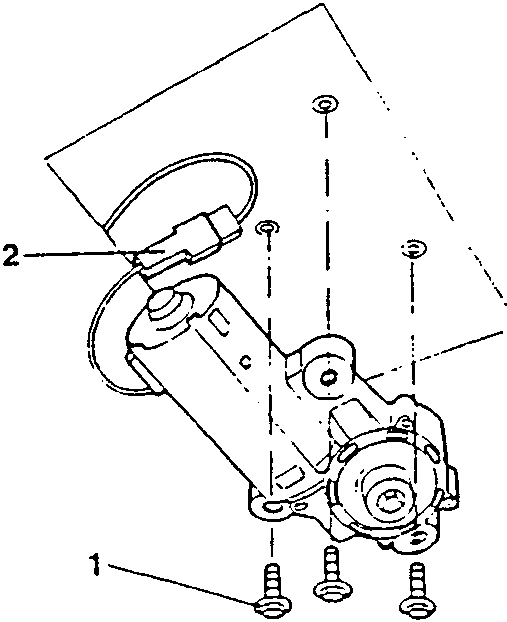

1. Unscrew the three screws securing the motor to the chassis.
2. Disconnect the supply connector and remove the motor.

To refit, reverse the procedures employed for removal observing the following:

• For components and/or parts dealt with in other pages of this or other groups, refer to the related procedures and indications (see: GR. 66 - FRONT COURTESY LIGHT).
• Before connecting the electrical connectors, check that the electric cables are correctly inserted.

EMERGENCY MANUAL ACTIVATION OF THE ELECTRIC SUNROOF

The operation should be carried out in the event of a malfunction in the electric sunroof motor system. It is possible to manually activate it using a screwdriver and following the procedure described below.

1. Remove the front courtesy light moulding.

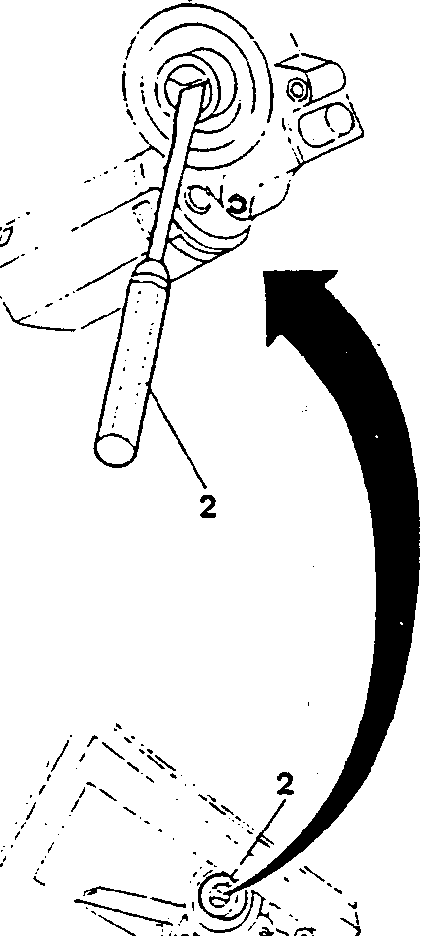

2. Insert a screwdriver in the seating of the motor body and rotate until the roof is at the desired position.
