Chieks and inspections

CHIEKS AND INSPECTIONS

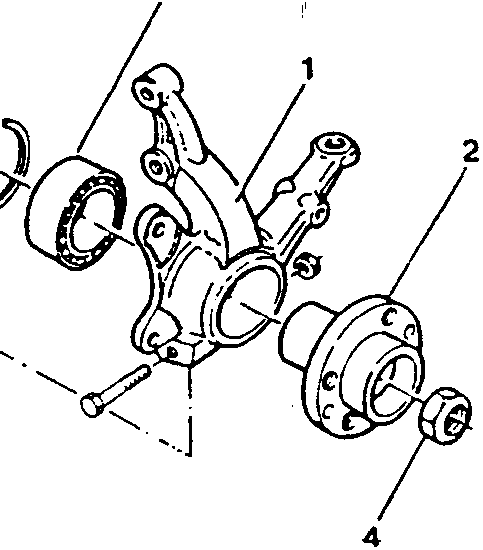

1. Check that the inner surfaces of the wheel support show no traces of seizing and that the arms are not damaged and show no signs of knocking, deformation or breakage. If any of these conditions are found, replace the support.
2. Check that the surfaces of the wheel hub and replace if they are damaged or broken.
3. Check the bearing for cracks, binding and seizing. Replace the bearing if necessary.
4. The nut securing the constant speed joint should always be substituted before refitting.

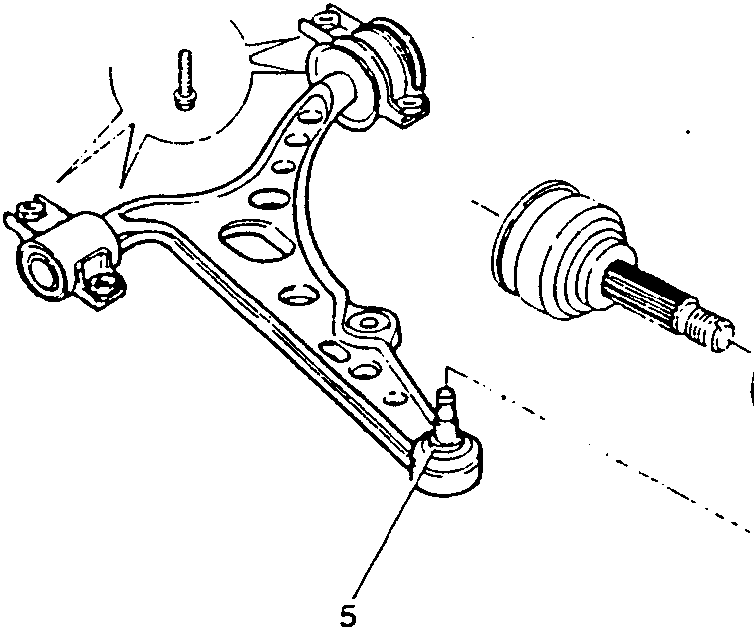

5. Check the condition of the ball pivot securing the wheel support to the swinging arm and ensure that it is not deformed, worn, cracked, seized or oxidized. If necessary replace the ball pivot.

REFITTING

Only for 1.8/2.0 T.S. vehicle.

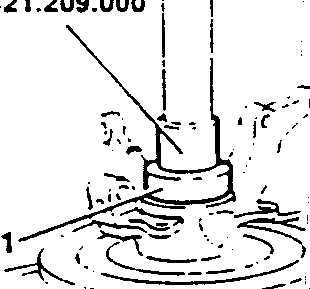

1. Using a press and inserting tool No. 1.821.209.000, insert the bearing into the wheel hub.
