Front suspensionChieks and inspections · page 2 of 2

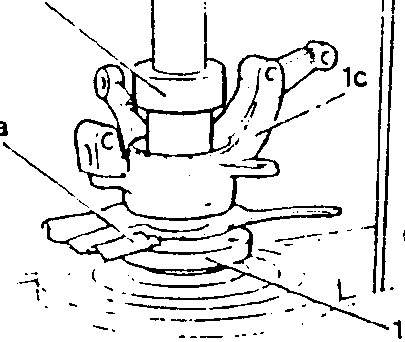

1. Place the brake disc protection (1a) on the wheel hub (1b) and using a press and using inserting tool No. 1.621.209.000 in an upside-down position in relation to the previous step, insert the hub into the wheel support (1c).

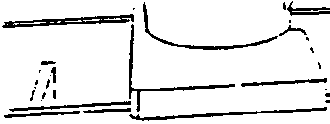

1. Install the bearing snap ring into its seating on the wheel support.

1. Only for 2.4 V6 vehicle.

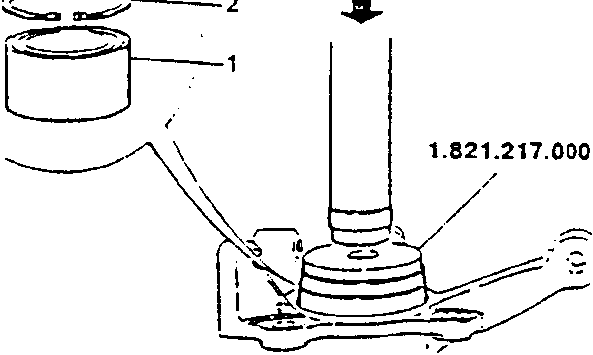

2. Using a press and using inserting tool No. 1.821.217.000, insert the bearing into the wheel support.

1. Install the bearing snap ring into its seating on the wheel support.

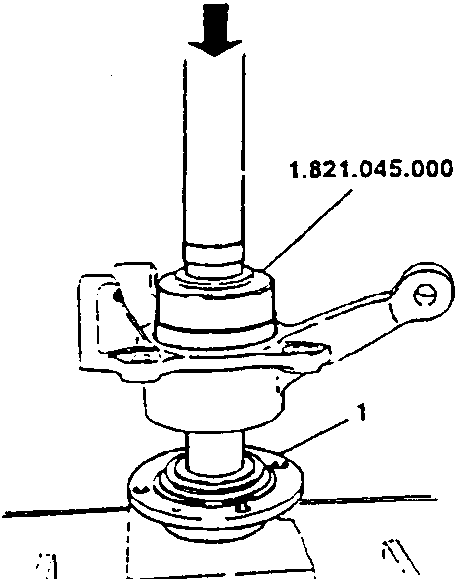

2. Using a press and using inserting tool No. 1.821.045.000, insert the hub into the wheel support.
