Fuel system (V6)Checks and inspections · page 2 of 2

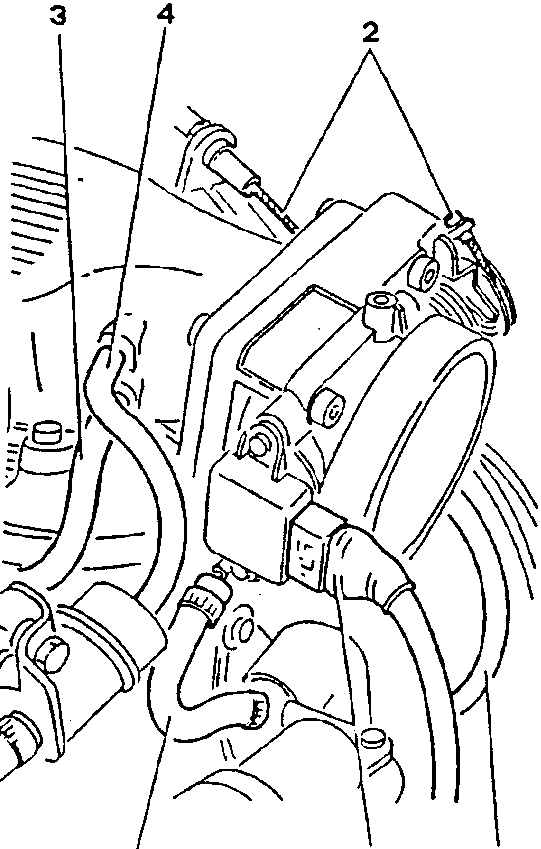

1. Disconnect the electrical connection from the throttle valve potentiometer.
2. Disconnect the accelerator cable from the throttle valve.
3. Disconnect the fuel pressure regulator vacuum intake pipe from the air intake box.
4. Disconnect the fuel vapour recirculation hose from the air intake box.
5. Disconnect the engine coolant inlet and outlet hoses from the throttle body.

1. Throttle valve potentiometer electrical connection
2. Accelerator cable
3. Fuel pressure regulator vacuum intake pipe
4. Fuel vapour recirculation hose
5. Engine coolant inlet and outlet hoses

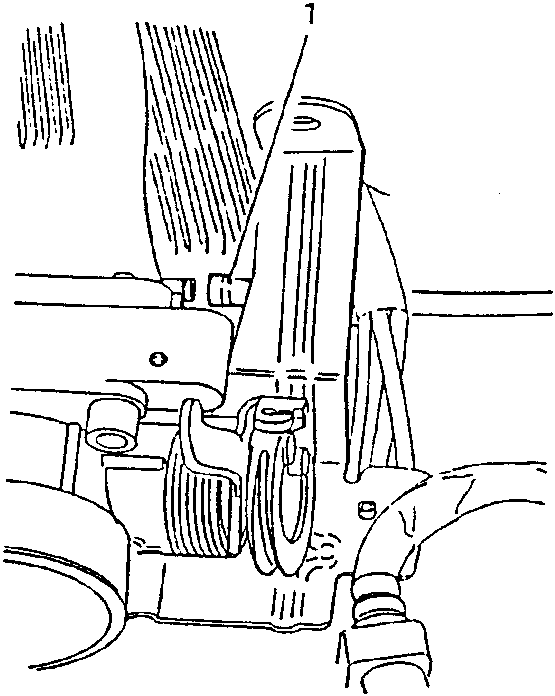

1. Disconnect the servo brake vacuum intake hose from the air intake box.

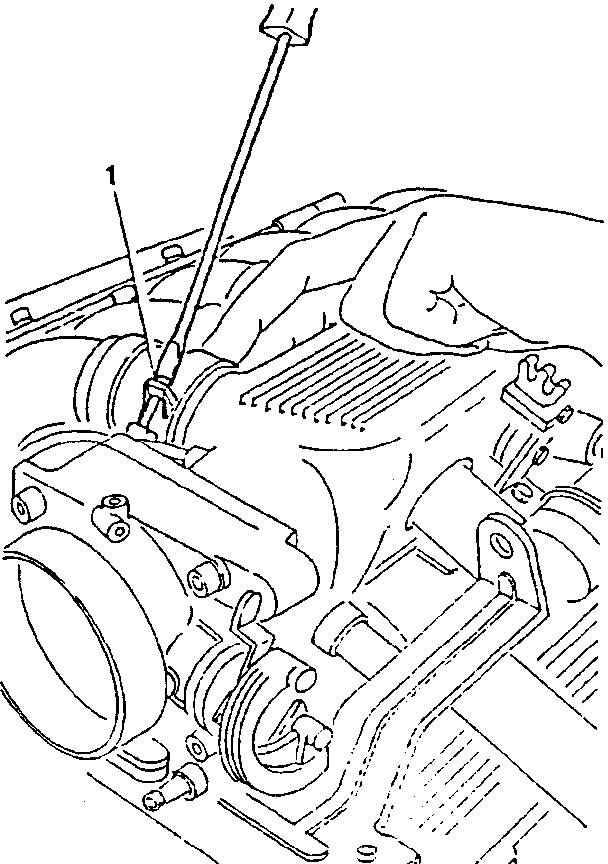

1. Loosen the clamps securing the intake stub pipes to the air intake box.
