Checks and inspections

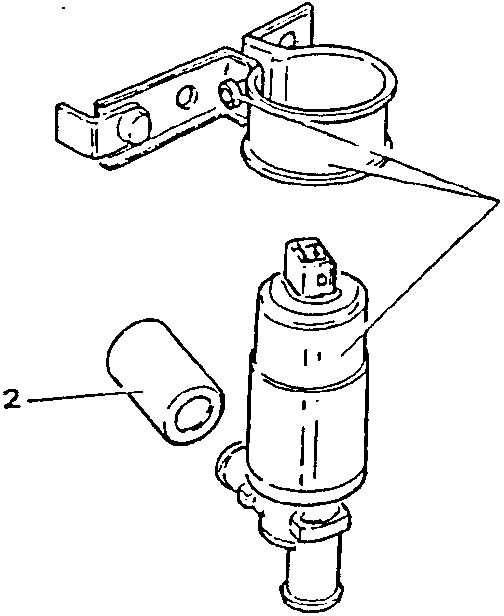

1. On a bench loosen the clamp and remove it from the constant idle speed actuator.
2. Remove the gasket.

1. Clamp
2. Gasket

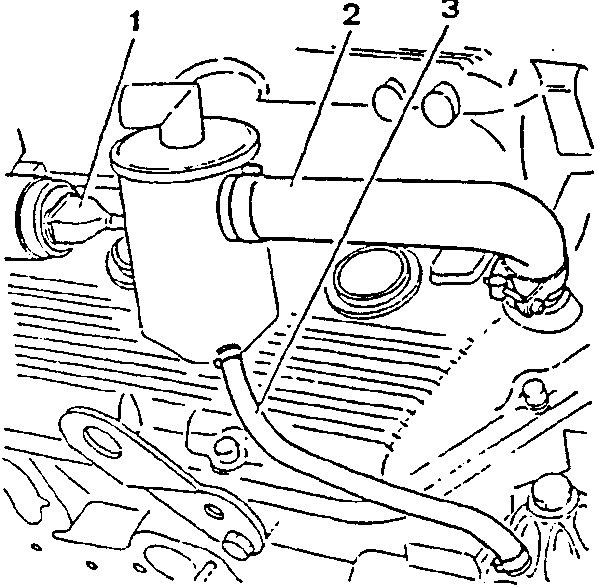

1. Disconnect the connection from the constant idle speed actuator.
2. Disconnect the oil vapour recovery hose from the separator.
3. Disconnect the oil vapour recovery hose.

CHECKS AND INSPECTIONS

For a functional check of the electromagnetic part, refer to the ELECTRICAL - ELECTRONIC DIAGNOSIS manual.

AIR INTAKE BOX

REMOVAL/REFITTING

• Disconnect the negative cable from the battery.

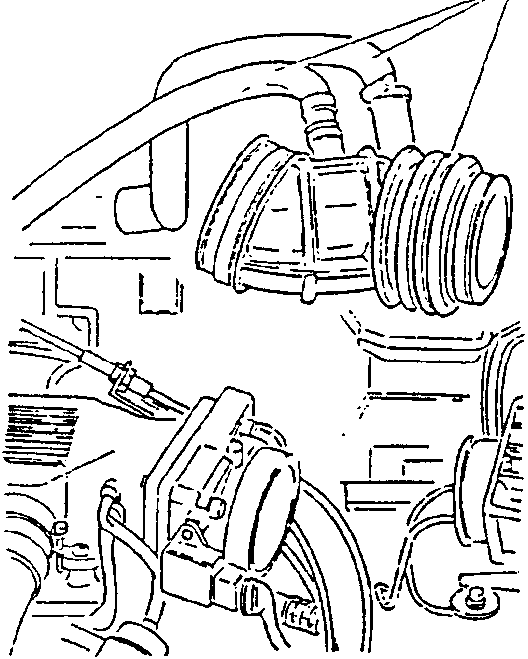

1. Remove the corrugated sleeve together with constant idle speed actuator air intake pipe and oil vapour recirculation nose.
