Fuel system (V6)Checks and inspections · page 2 of 2

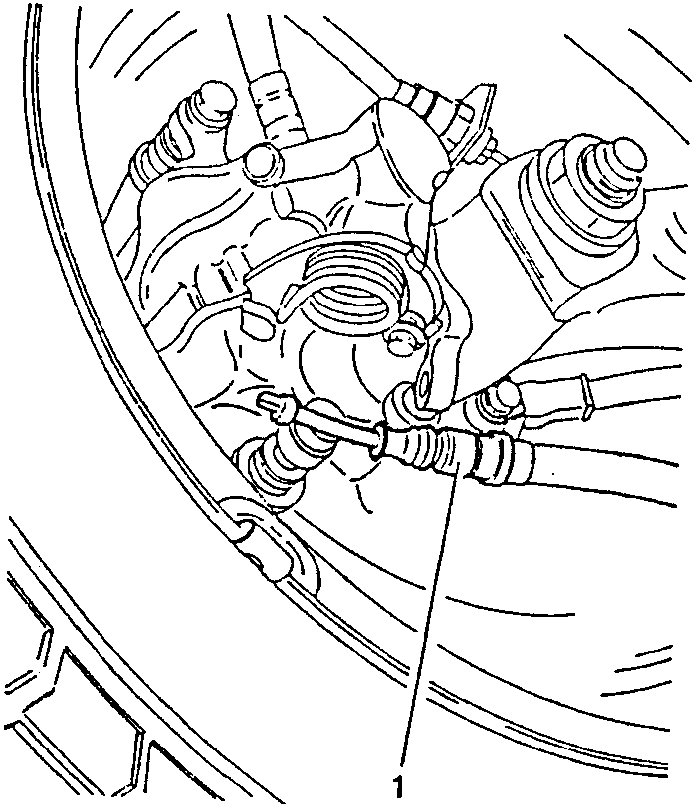

- Disconnect the handbrake cable from the rear left-hand brake caliper.

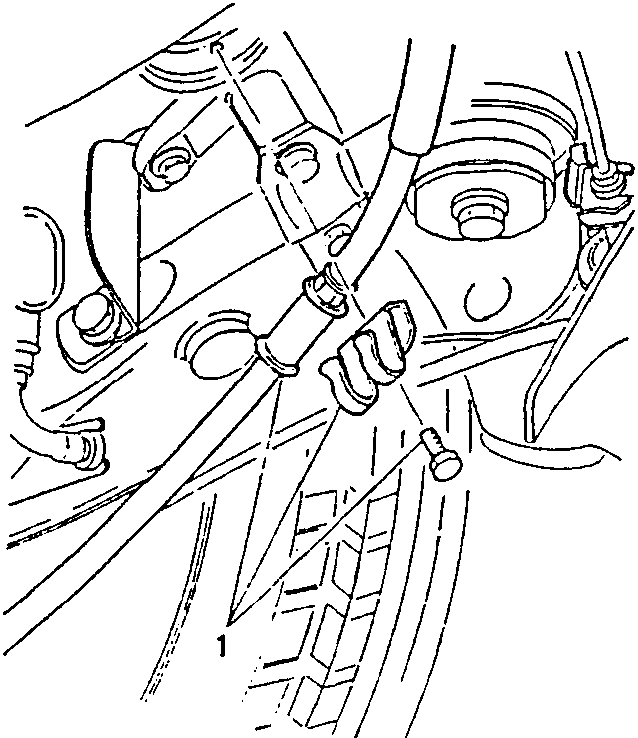

- Unscrew the screw securing the brake line support brackets and handbrake cable and remove the handbrake cable from the bracket.

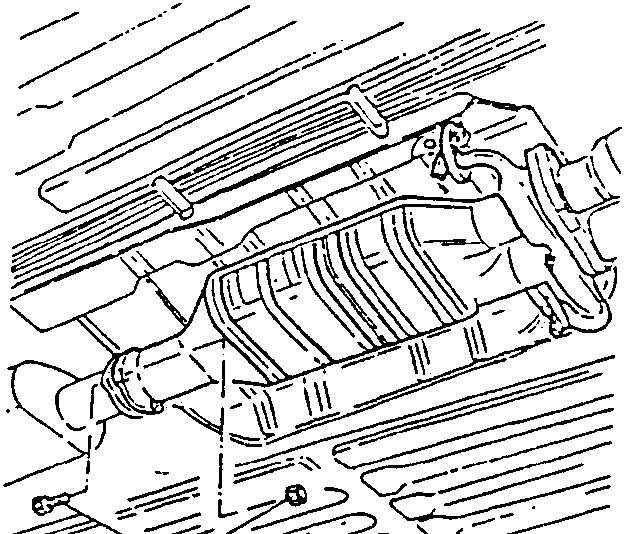

- Unscrew the screws securing the flange connecting the catalytic converter to the rear section of the exhaust pipe.

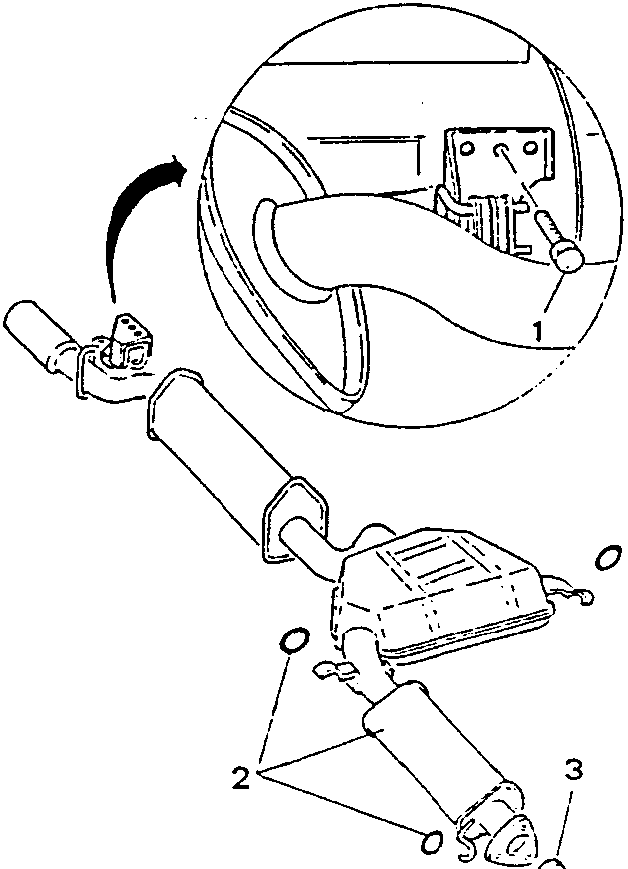

- Unscrew the screw securing the rear flexible support to the car body.
- Remove the rear section of the exhaust pipe withdrawing it from the flexible support rings.
- Remove the seal rings.
