Checks and inspections

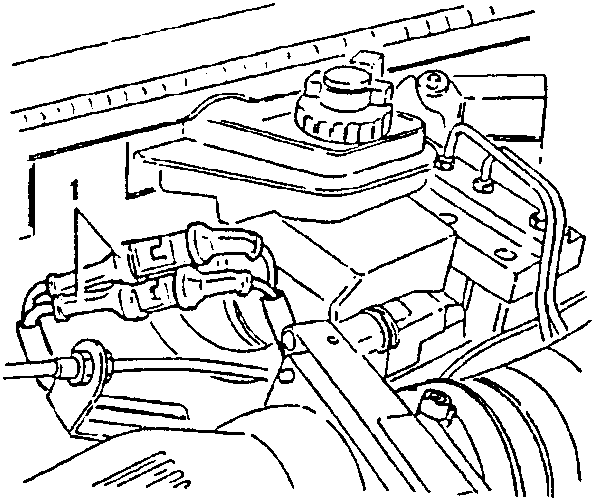

1. Disconnect the two electrical connections from the lambda probe.

• Raise the vehicle.

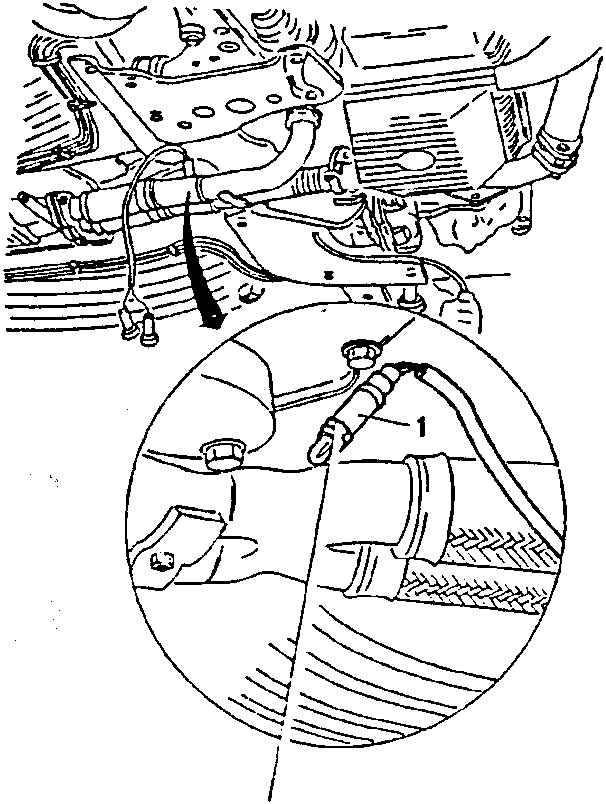

1. Remove the lambda probe from the forward section of the exhaust pipe.

50 - 60 Nm
5.1 ÷ 6.1 kgm

CHECKS AND INSPECTIONS

To check the operation of the lambda probe and of the heating resistance, refer to the ELECTRICAL - ELECTRONIC DIAGNOSIS manual.

EXHAUST - REAR SECTION

The rear section of the exhaust is composed of three silencers connected by a pipe and supported by the underbody by flexible rings. The connection to the catalytic converter is obtained by a flange and seal ring.

REMOVAL/REFITTING

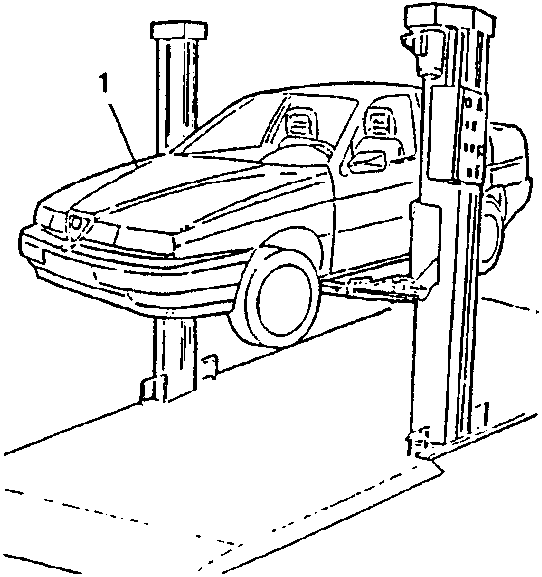

1. Place the vehicle on a lift and raise it.
