Fuel system (V6)Checks and inspections

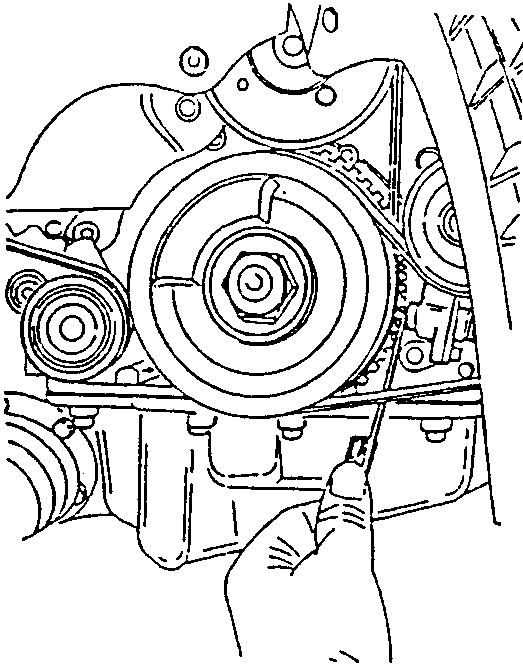

Using a feeler gauge check that the gap between sensor and phonic wheel is with the specified limits.
| Air gap between r.p.m. and timing sensor and phonic wheel | |
|---|---|
| T = 0.5 to 1.5 mm |
CHECKS AND INSPECTIONS
- To check the functioning of the r.p.m. and timing sensor refer to the electrical - electronic DIAGNOSIS manual.
ENGINE COOLANT TEMPERATURE SENSOR (NTC)
The temperature sensor is of the electronic type. The sensitive part is formed by a NTC resistance with a negative resistance coefficient able to diminish its resistance (supplied with a constant voltage by the control unit) as the temperature rises.
The sensitive part is in contact with the engine coolant
The voltage passing the resistance, measured by the control unit, is therefore proportional to the temperature of the engine.

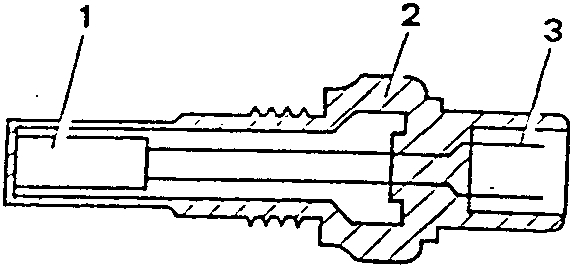

- NTC resistance
- Body
- Connectors

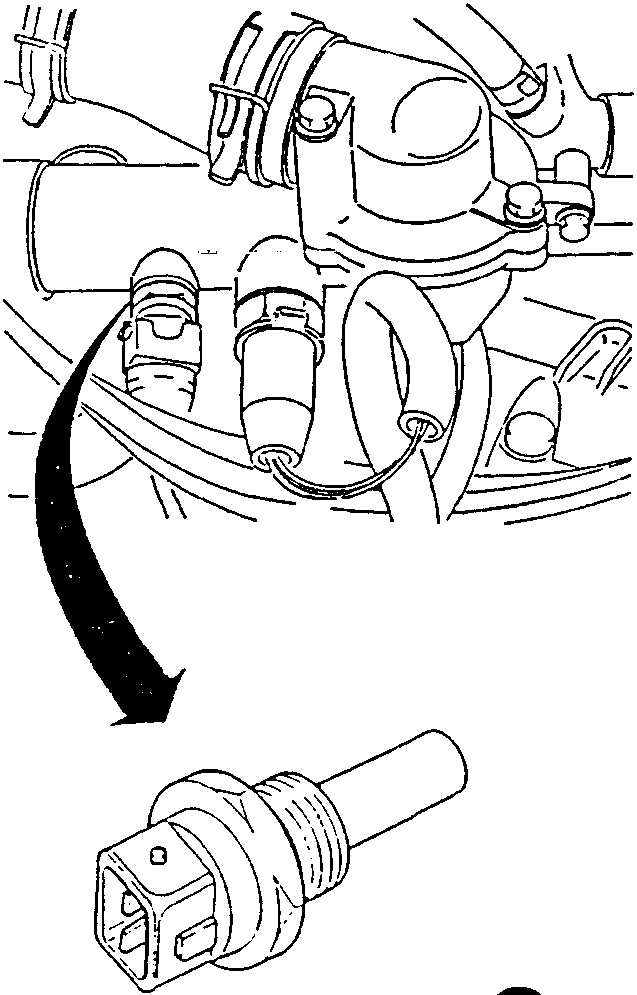

The sensor is housed in a thermostatic cup located in an easily accessible position.
