Checks and inspections

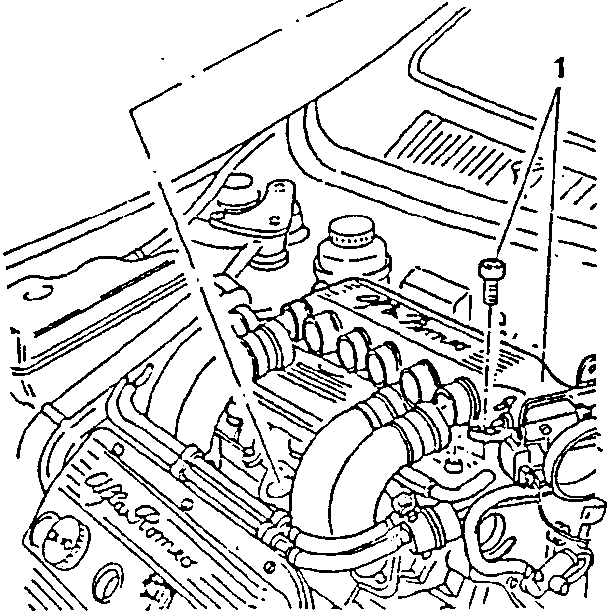

1. Unscrew the screws securing the intake box and move it backwards to enable the intake stub pipes to be removed.

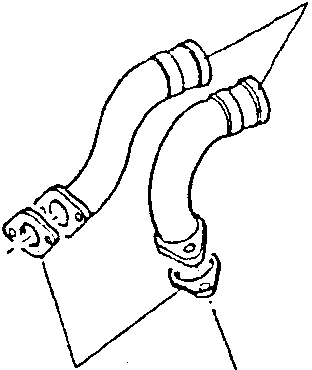

2. Remove the intake stub pipes.
3. Remove the gaskets.

For each electroinjector:

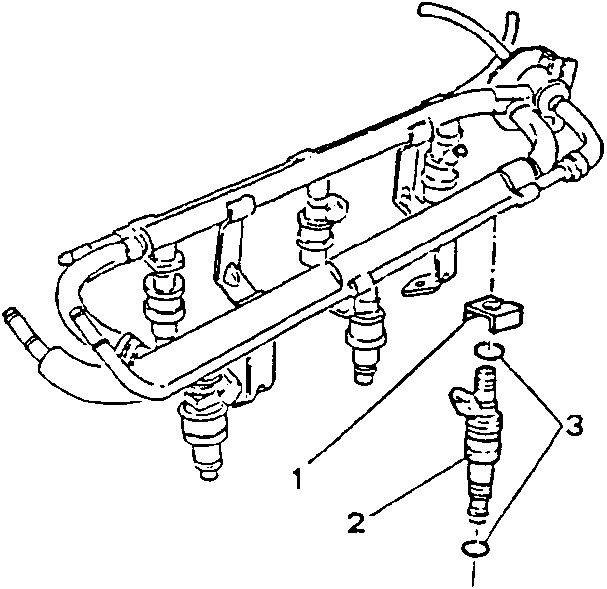

1. Withdraw the clip securing the electroinjector to the fuel manifold.
2. Remove the electroinjector.
3. Remove the seal rings.

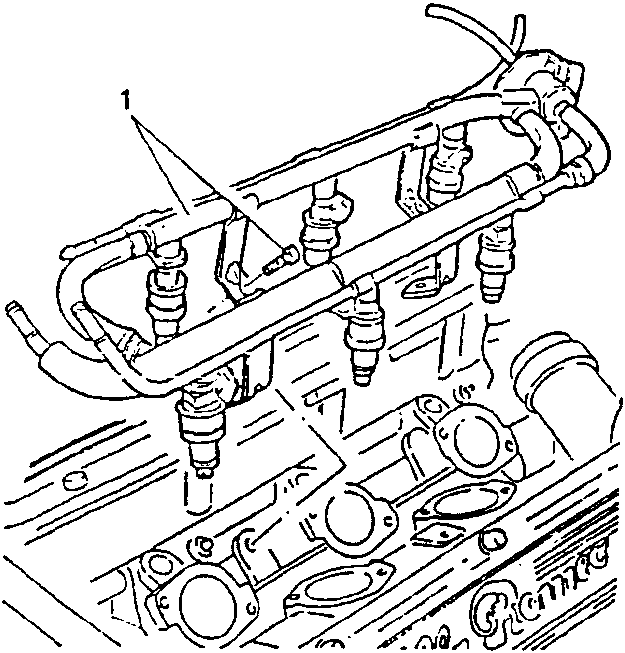

1. Remove the fuel supply manifold together with the electroinjectors by unscrewing the four retaining screws.

CHECKS AND INSPECTIONS

To check the functioning of the single injectors refer to the ELECTRICAL - ELECTRONIC DIAGNOSIS manual.
