Fuel system (V6)Removal/refitting

REMOVAL/REFITTING

  • Disconnect the negative cable from the battery.

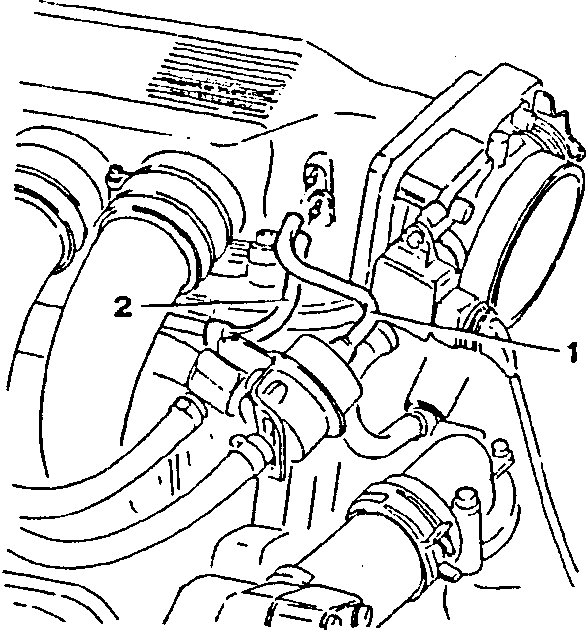

  1. Disconnect the pressure regulator vacuum intake hose from the intake box.
  2. Disconnect the fuel vapour recirculation hose from the intake box.
Engine diagram showing hoses connected to intake box

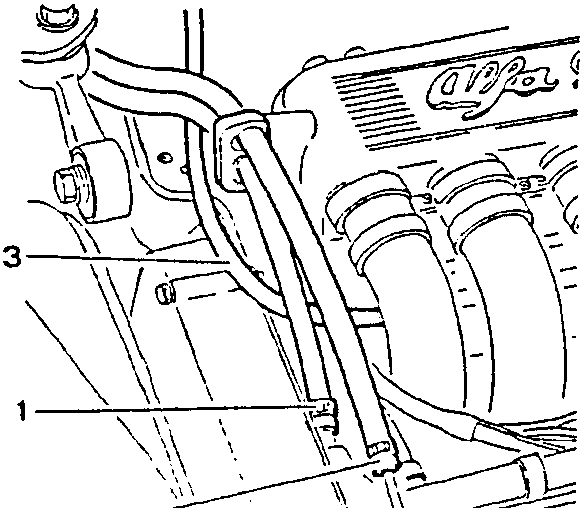

  1. Disconnect the fuel delivery hose from the manifold.
  2. Disconnect the fuel return hose from the manifold.
  3. Disconnect the fuel vapour recirculation hose from the manifold.
Engine diagram showing hoses connected to manifold

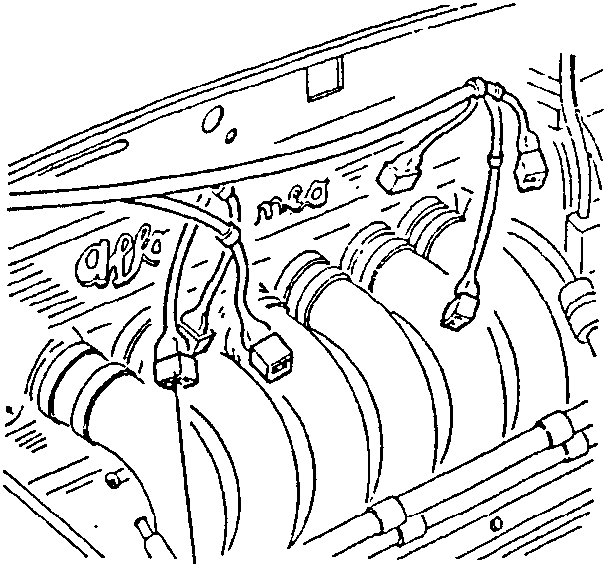

  1. Disconnect the electrical connections from the electroinjectors.
Engine diagram showing electrical connections to electroinjectors

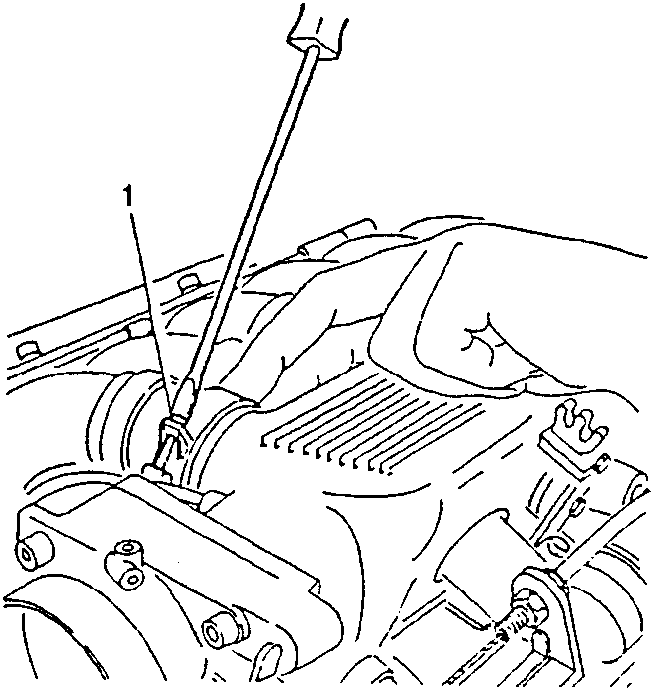

  1. Loosen the clamps securing the intake stub pipes to the intake box.
Engine diagram showing tool loosening clamps on intake stub pipes
