Fuel system (V6)Removal/refitting

REMOVAL/REFITTING

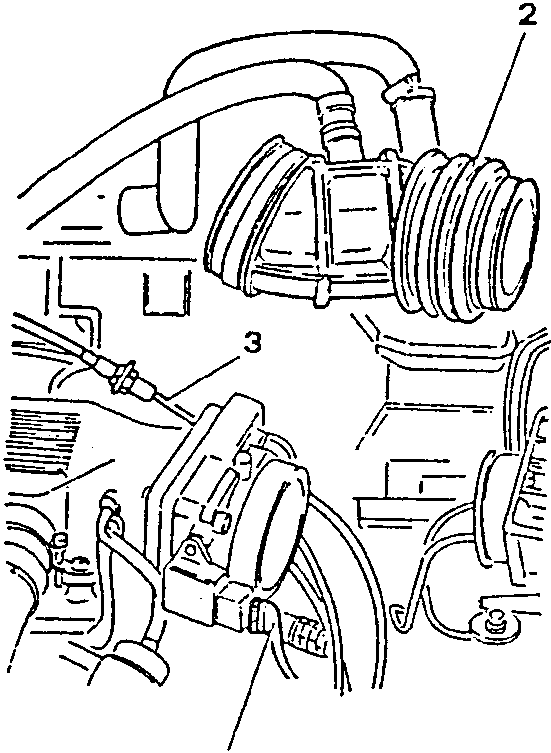

  • Disconnect the negative cable from the battery.
  1. Disconnect the connection from the throttle valve potentiometer.
  2. Remove the corrugated sleeve together with the air intake pipe, constant idle speed actuator and oil vapour recirculation hose.
  3. Disconnect the accelerator cable from the throttle valve.
Throttle body with connected hoses and components

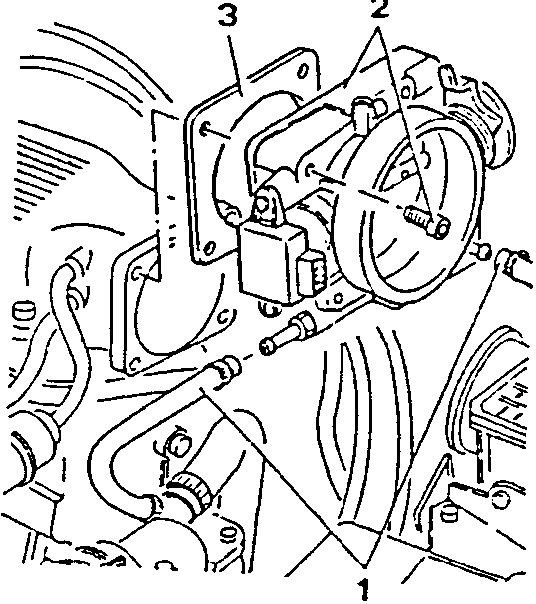

  1. Disconnect the throttle body coolant inlet and outlet pipes.
  2. Unscrew the retaining screws and remove the entire throttle body.
  3. Remove the gasket.
Throttle body with potentiometer and accelerator cable support bracket

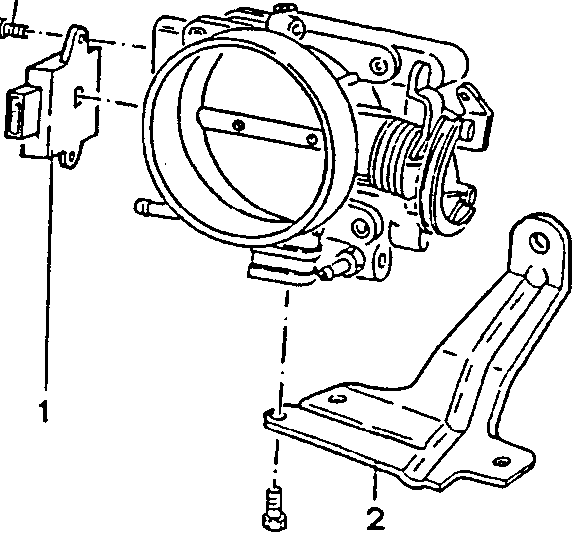

  1. Remove the potentiometer from the throttle body.
  2. Remove the accelerator cable support bracket from the throttle body.

17.1 ÷ 18.9 Nm
1.74 ÷ 1.92 kgm

Throttle body with mounting bracket and shaft
  • Check that radial and axial play of the throttle shaft are within the specified limits.
RADIAL PLAY AXIAL PLAY
at refitting ≤ 0.06 mm ≤ 0.6 mm
at overhaul ≤ 0.08 mm ≤ 0.6 mm
