Disassembly 2.4 v6 (page 2 of 4)

1. Remove the ring nuts securing main and lay shaft gears.

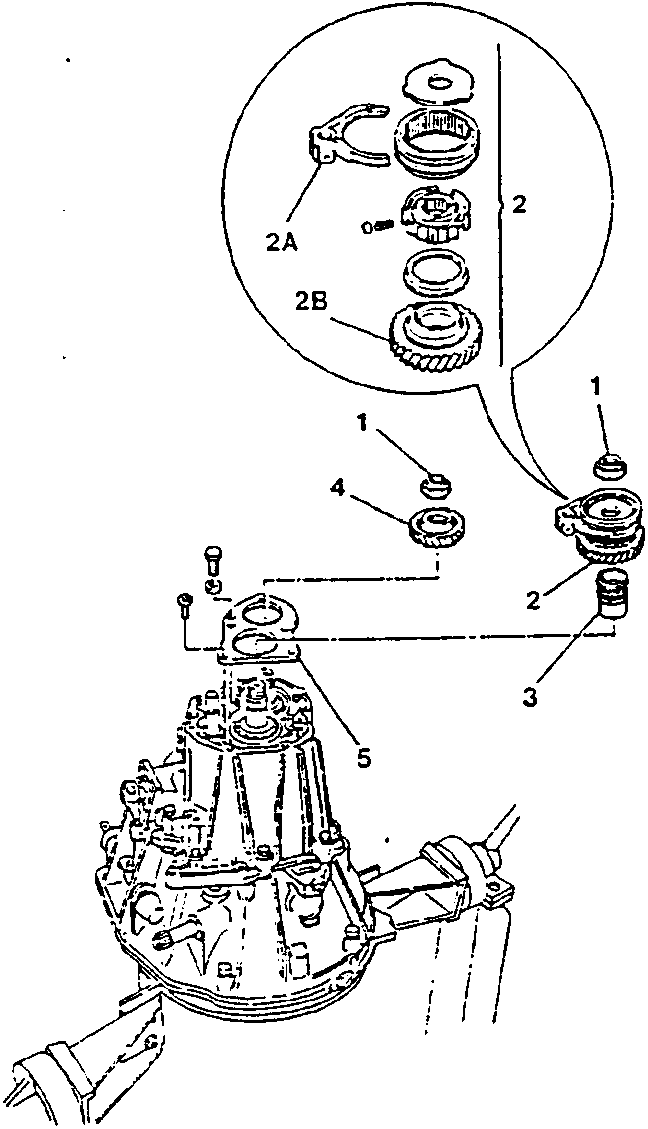

2. Withdraw hub-sleeve assembly with fork (2A) and drive gear (2B) with 5th speed synchronizer ring from main shaft.

1. Withdraw roller bearing and bushing of 5th speed gear from main shaft.
2. Withdraw 5th speed driven gear from layshaft.
3. Remove gearbox rear bearings retaining plate.

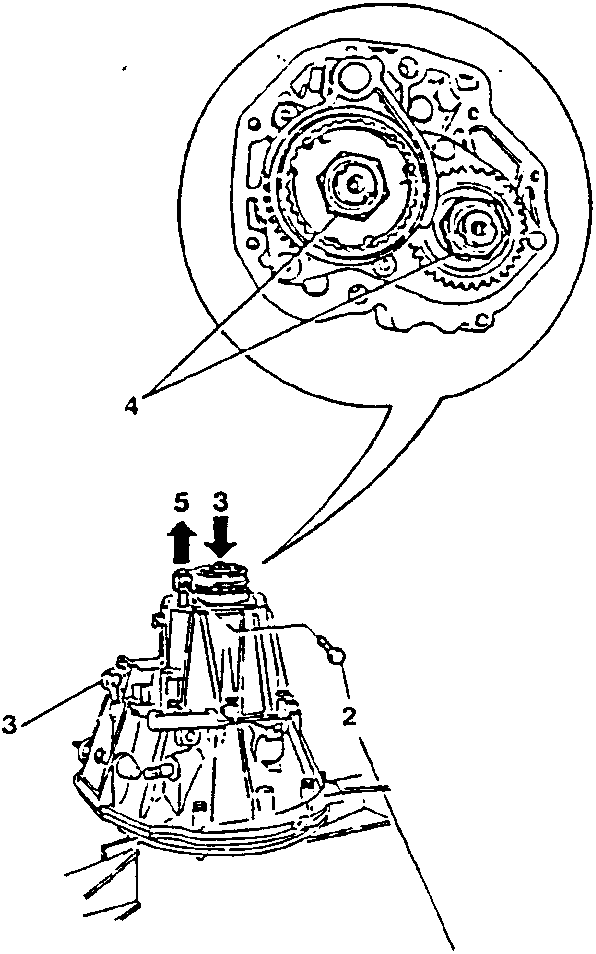

1. Remove the bolt securing 5th speed engagement fork to main shaft.
2. Lock gearbox shafts engaging 5th speed by hand (pressing the fork on main shaft) and engaging a speed using the selector lever.
3. Loosen the main and lay shaft ring nuts.
4. Return main shaft fork to idle position.

24 ÷ 31 N·m
(2.4 ÷ 3.2 kg·m)
