Gearbox and differentialDisassembly 2.4 v6 · page 4 of 4

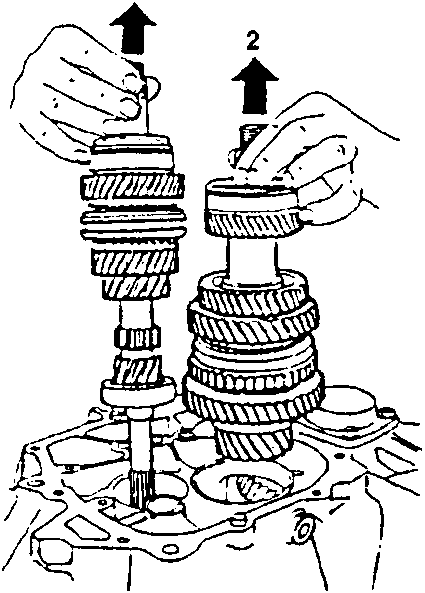

  1. Remove the main shaft assembly.
  2. Remove the lay shaft assembly.
Illustration showing hands removing two shaft assemblies with arrows indicating upward removal

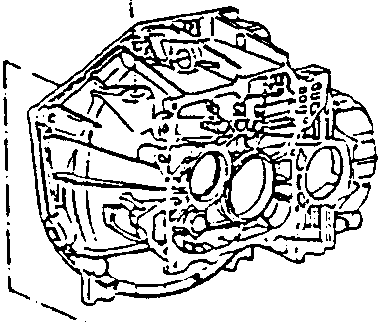

  1. Remove thrust bearing control shaft and fork.
  2. Remove thrust bearing sleeve.
Diagram of gearbox housing with thrust bearing components shown detached
Close-up of thrust bearing control shaft and fork components

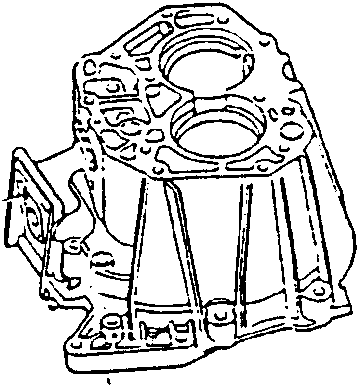

  1. Remove complete speed control rod.
Illustration showing speed control rod being removed from gearbox housing
Close-up of the speed control rod component
