Alfa Romeo 155 Factory Service Manual (1992-1998)51 · Gearbox and differential
51 · Transmission

Installation (page 2 of 3)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Installation
Gearbox and differentialInstallation · page 2 of 3
  1. Install oil seal into seal cover using specified tool.
  2. Install O-ring on cover.
  3. Install seal cover - gearbox side
  4. Settle outer race of roller bearing into seating - (engine side).

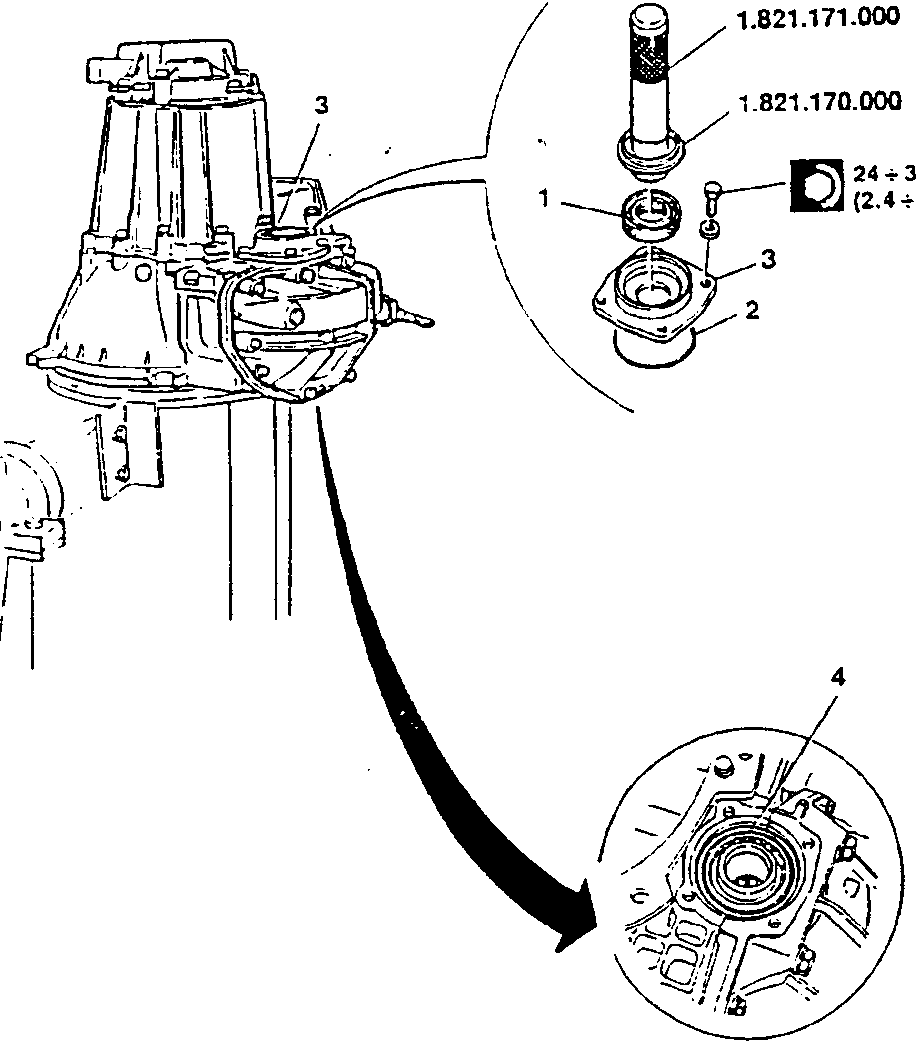

Diagram showing installation of oil seal, O-ring, and seal cover on gearbox side, with a close-up inset of the roller bearing assembly and torque specification.
  1. 1.821.171.000
  2. 1.821.170.000
  3. 24 ÷ 31 N·m
    (2.4 ÷ 3.2 kg·m)

24 ÷ 31 N·m
(2.4 ÷ 3.2 kg·m)
