Gearbox and differentialInstallation · page 3 of 3

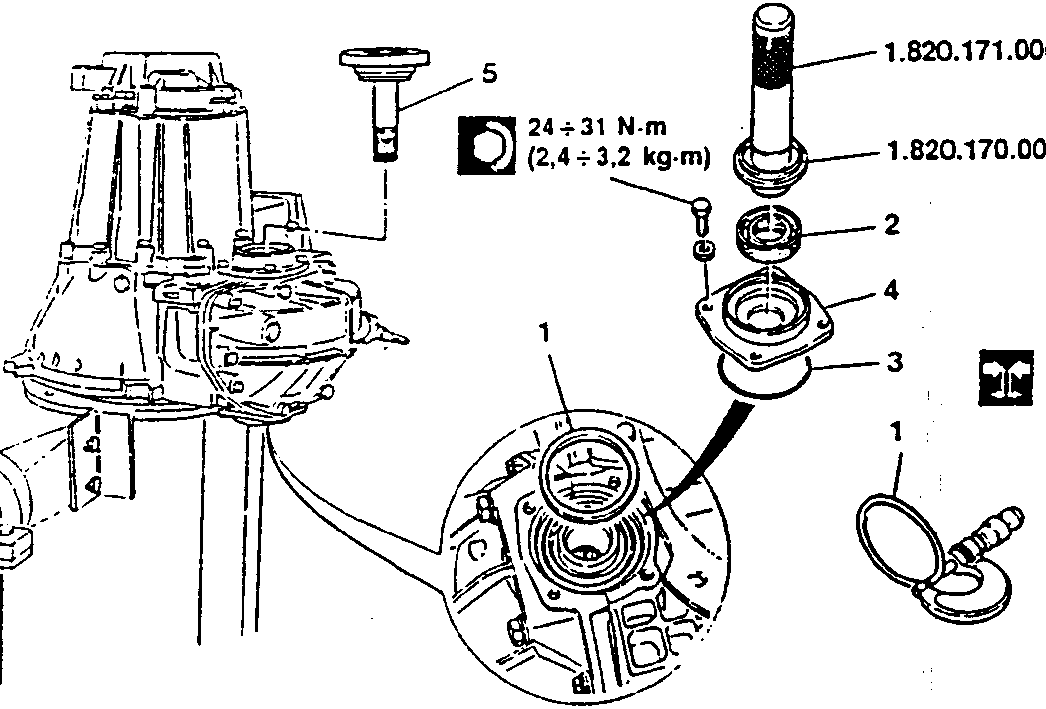

1. Install shim ring of suitable thickness (refer to DIFFERENTIAL ADJUSTMENT).
2. Install oil seal into cover using suitable tool.

1. Install O-ring on cover.
2. Install seal cover - engine side.
3. Install left axle securing flange.

24 ÷ 31 N-m
(2,4 ÷ 3,2 kg-m)

1. part name
2. part name
3. part name
4. part name
5. part name

51 Transmission
