Layshaft disassembly (page 2 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Layshaft disassembly

Gearbox and differentialLayshaft disassembly · page 2 of 3

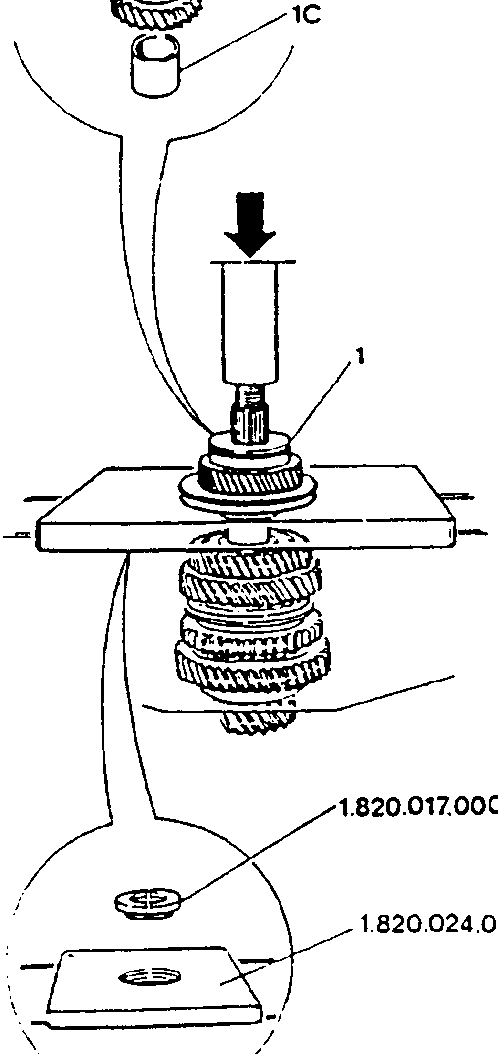

1. Using a hydraulic press, plate No. 1.820.024.000 and half rings No. 1.820.017.000, withdraw the 4th speed driven gear (1B) from the shaft together with the rear bearing (1A) and the spacer (1C).

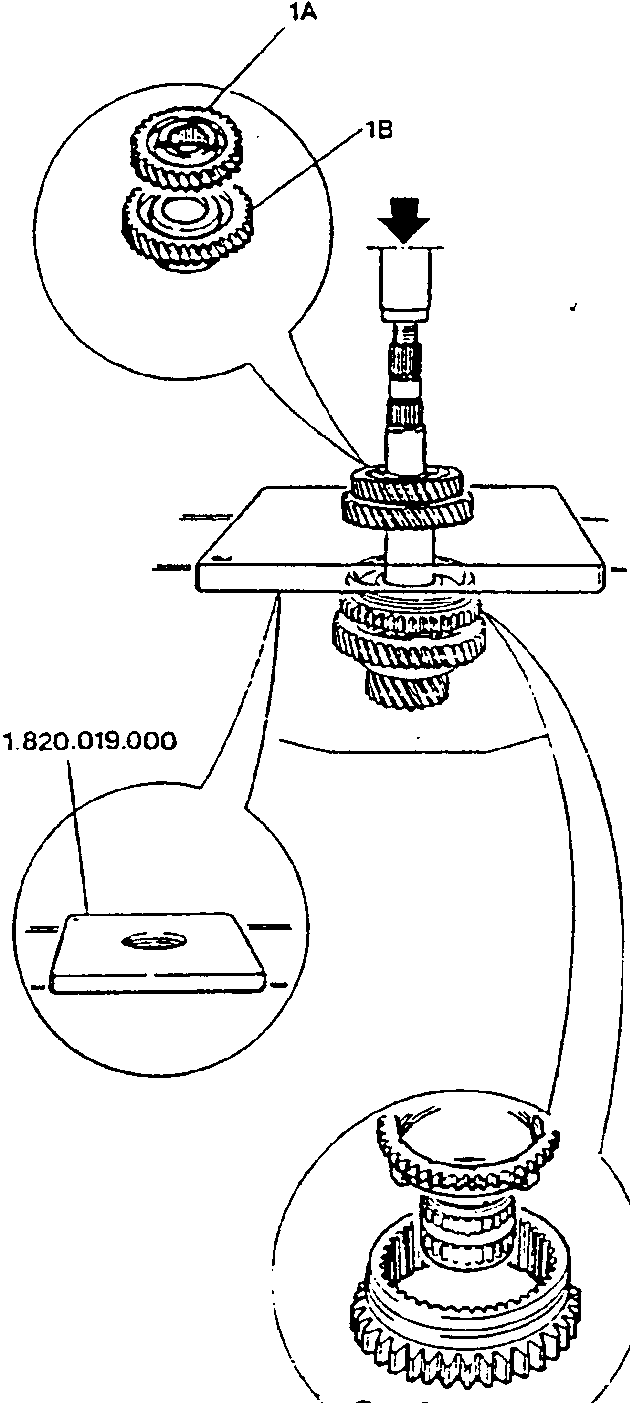

1. Using a hydraulic press and plate No. 1.820.019.000 withdraw the 2nd (1A) and 3rd (1B) speed driven gears and withdraw the 1st and 2nd speed engagement sliding sleeve (1C) together with springs and rollers (1D), 2nd speed synchronizer ring (1E) and the 2nd speed roller bearing (1F).

51 Transmission
