LAYSHAFT DISASSEMBLY

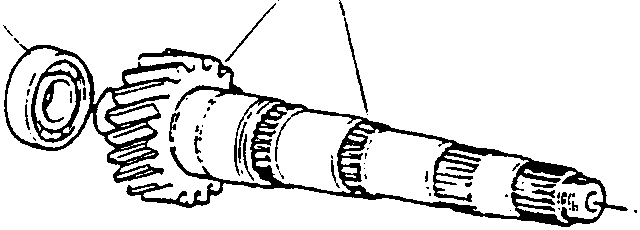

- Layshaft front bearing.
- Layshaft-pinion for taper for cylindrical crown gear

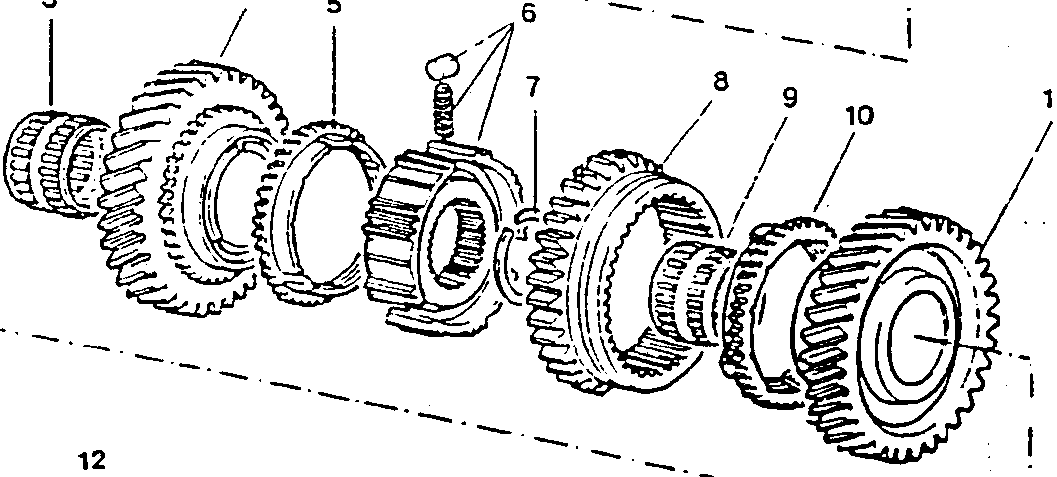

- Roller bearing for 5th speed gear
- 1st speed driven gear
- 1st speed synchronizer ring
- Hub complete with rollers and springs for 1st and 2nd speed engagement sliding sleeve
- Flexible retaining ring
- 1st and 2nd speed engagement sliding sleeve and reverse speed gear

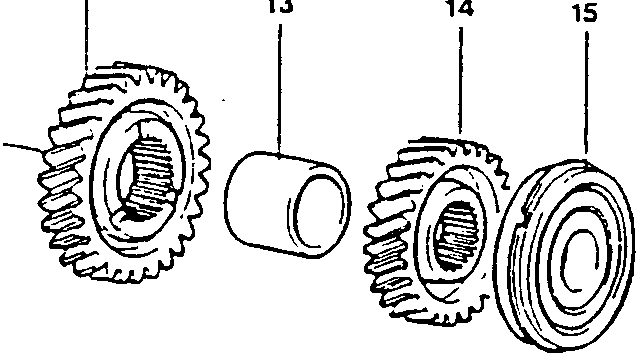

- 2nd speed gear roller bearing
- 2nd speed synchronizer ring
- 2nd speed driven gear
- 3rd speed driven gear
- Spacer between 3rd and 4th speed
- 4th speed gear
- Layshaft rear bearing
- 5th speed driven gear

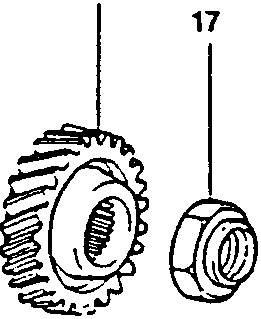

- Layshaft gear locking nut
