Gearbox and differentialLoctite 573 · page 6 of 6
  1. Unscrew the speed control prong retaining screws.
  2. Withdraw the speed control prong retaining pin.

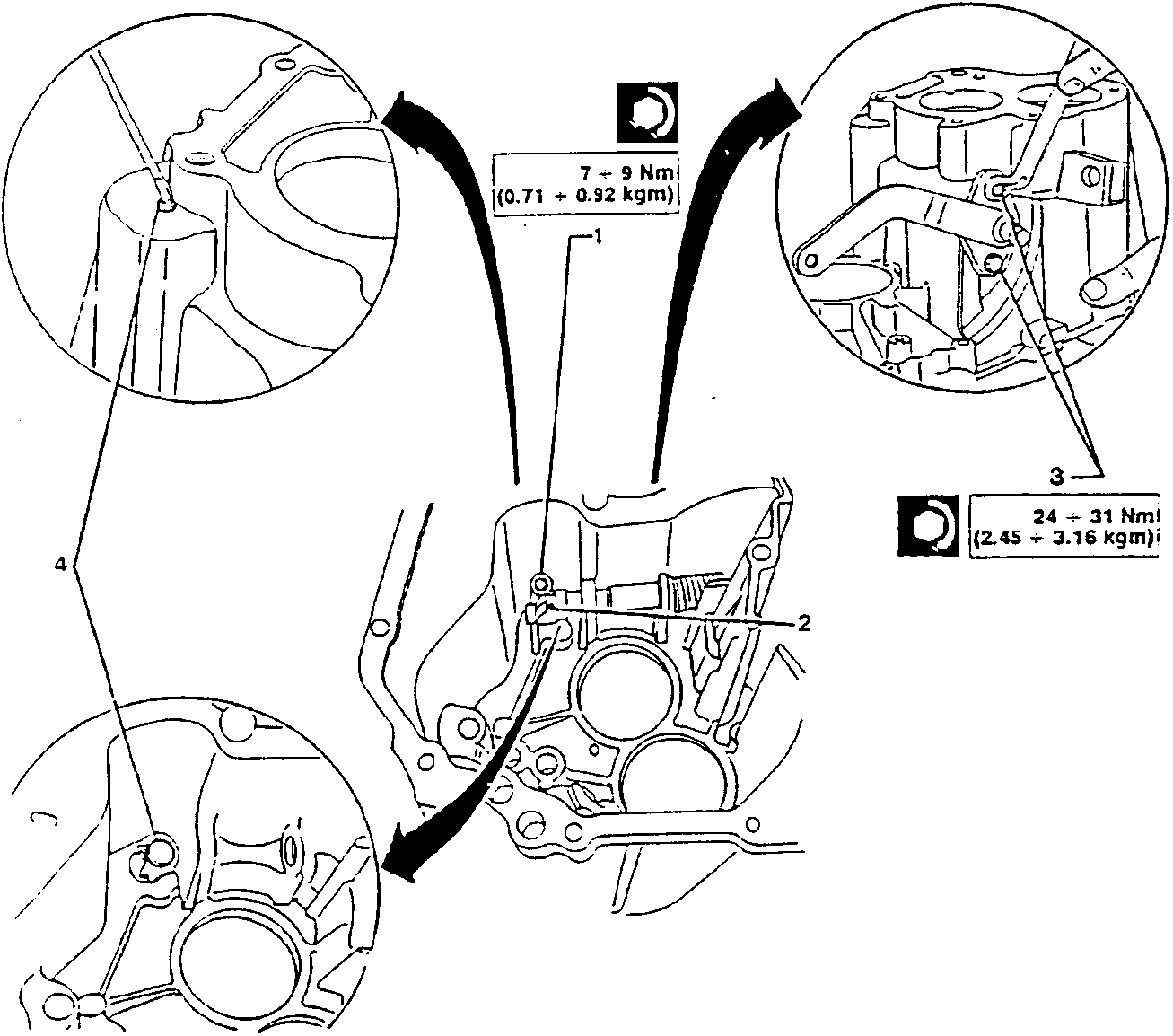

Diagram showing removal of speed control prong retaining screws and pin, with torque specifications 7-9 Nm (0.71-0.92 kgm) and 24-31 Nm (2.45-3.16 kgm) indicated for different components.

7 ÷ 9 Nm
0.71 ÷ 0.92 kgm

24 ÷ 31 Nm
2.45 ÷ 3.16 kgm

  1. Unscrew the two screws securing the lever to the gearbox and remove the lever.
  2. If necessary when removing the reverse speed engagement guide pin, first remove the external caulking and then withdraw the pin.
