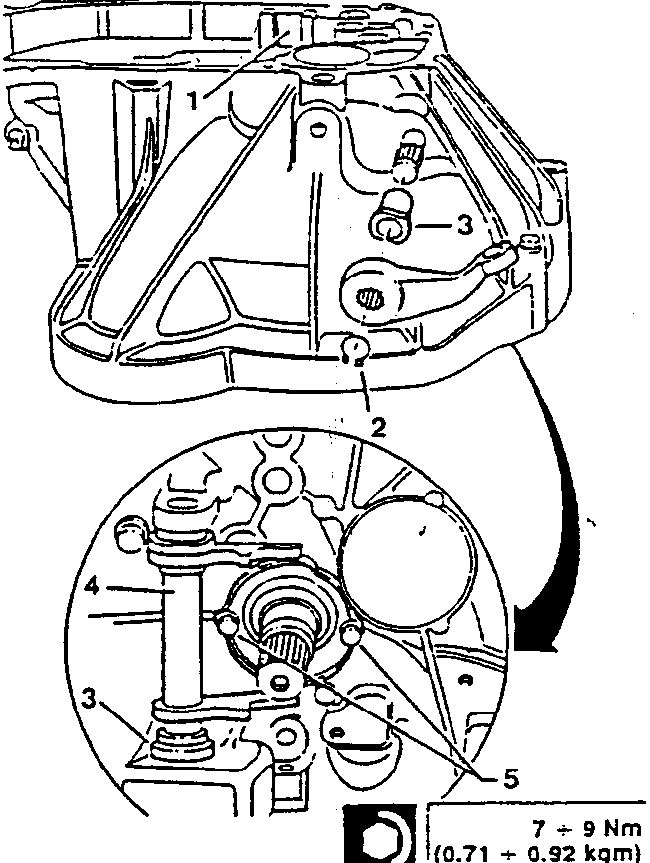

1. Remove the magnet and clean off any ferrous residues.
2. Remove the Seeger ring and withdraw the clutch engagement control lever.
3. Slide off and remove the anti-slip bushing from the engine-gearbox support union.

During reassembly install a new bush if there is excessive play in the pin.

4. Acting from inside the engine-gearbox support union, withdraw the clutch engagement sleeve control forked pin.
5. Unscrew the two screws and remove the thrust bearing sleeve.

During installation, replace the sleeve and seal if there are signs of oil leakage.

7 ÷ 9 Nm
(0.71 ÷ 0.92 kgm)

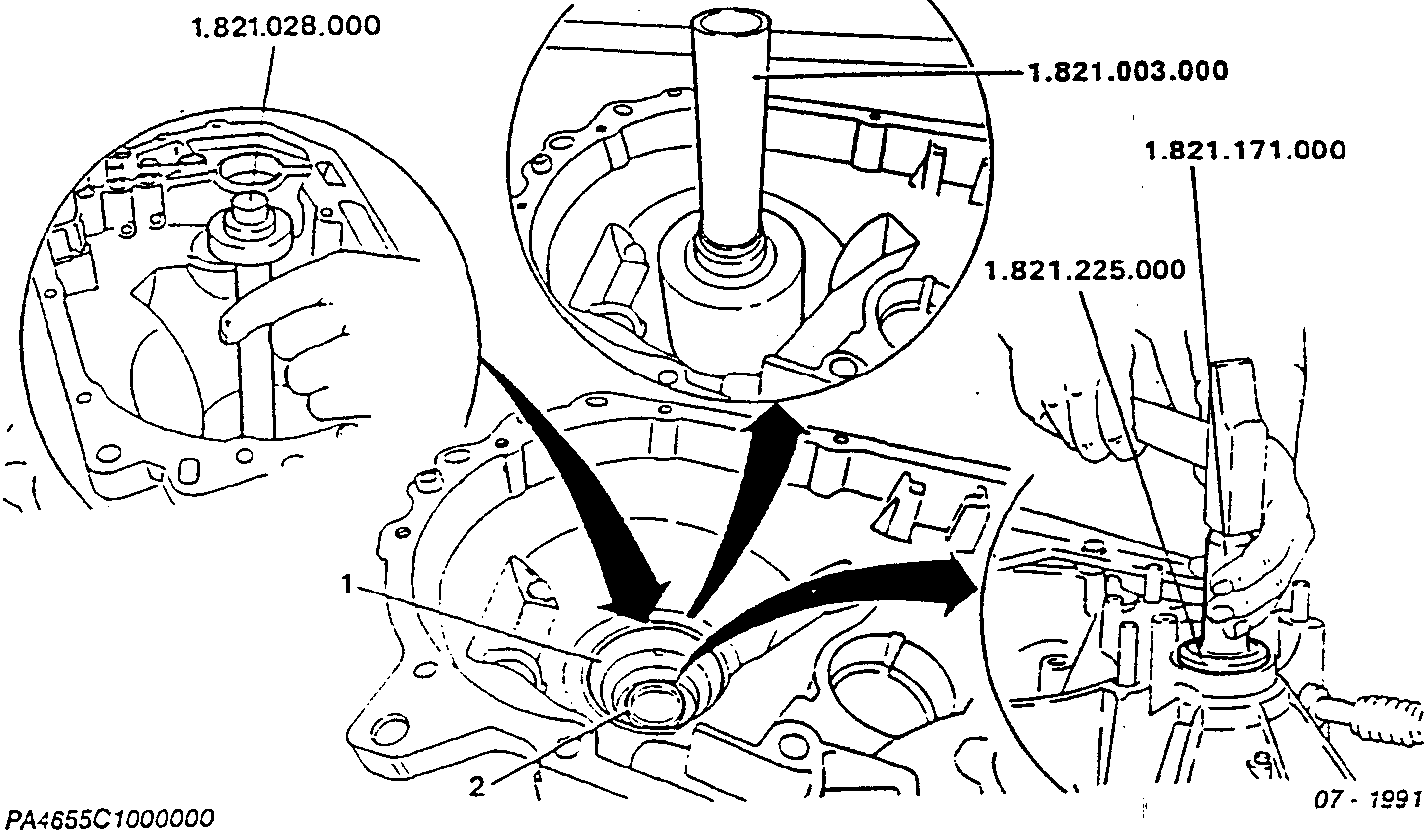

1. If necessary remove the outer race of the differential support roller bearing using tool No.1.821.003.000.
   During installation introduce the new race using tool No. 1.821.028.000.
2. If necessary remove the differential casing oil seal on the engine side.
   During reassembly insert a new oil seal using tools No. 1.821.171.000 and 1.821.225.000.
