Alfa Romeo 155 Factory Service Manual (1992-1998)51 · Gearbox and differential
51 · Transmission

Loctite 573

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Bench reassembly › Loctite 573
Gearbox and differentialLoctite 573 · page 1 of 6

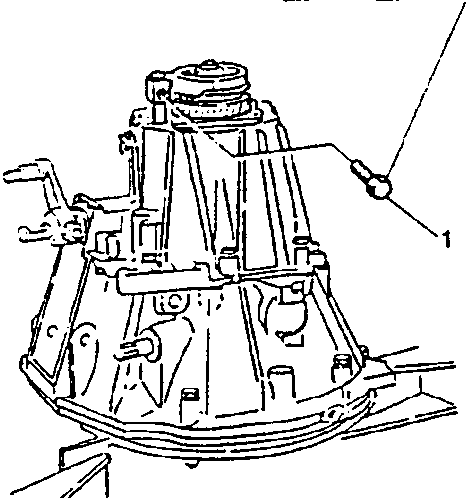

  1. Install 5th speed engagement fork retaining screw.
Diagram showing installation of 5th speed engagement fork retaining screw with torque specification

24 ÷ 31 N·m
(2.4 ÷ 3.2 kg·m)

  1. Install rear cover.

CAUTION: Wipe contact surfaces with sealant.

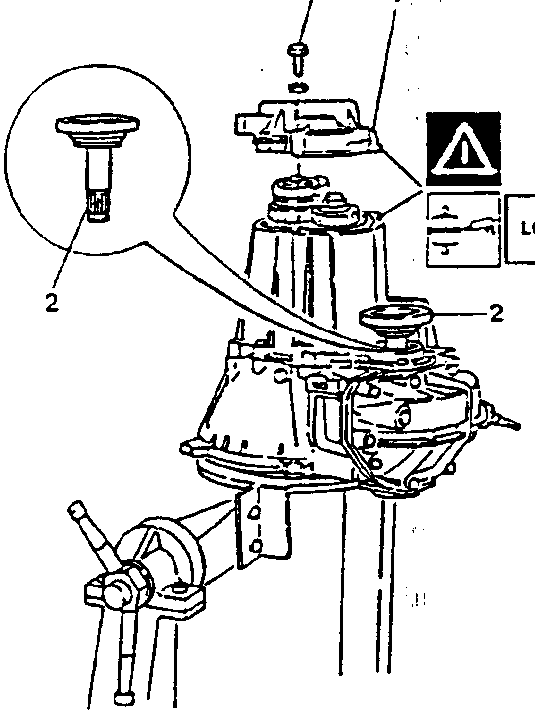

  1. Install flange.
Diagram showing installation of flange with torque specification and Loctite 573 application

24 ÷ 31 N·m
(2.4 ÷ 3.2 kg·m)

LOCTITE 573
