Bench reassembly (page 4 of 4)

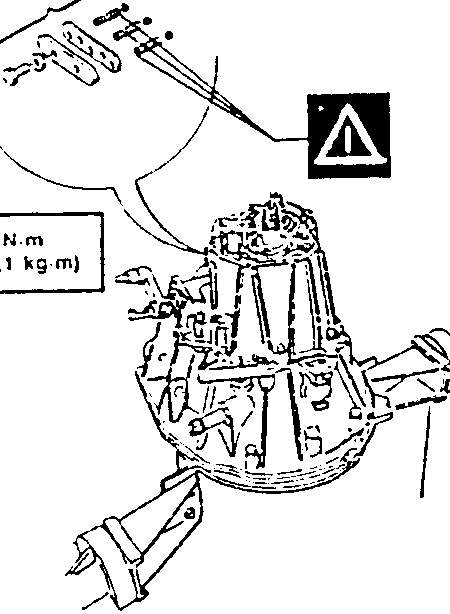

1. Install speed control rods, positioning balls and springs.

CAUTION: Install spring made with wire of larger diameter on 5th and reverse speed control rod.

1. Install speed engagement idler arm and relative support.

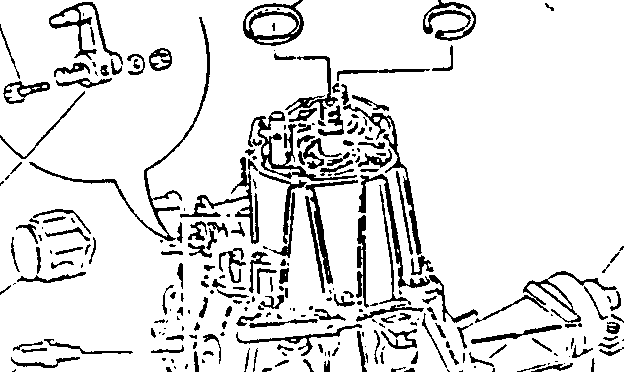

2. Install flexible retaining rings securing bearings.
3. Install reversing light switch.
4. Install rubber protection.

1. Install rear bearings retaining plate.

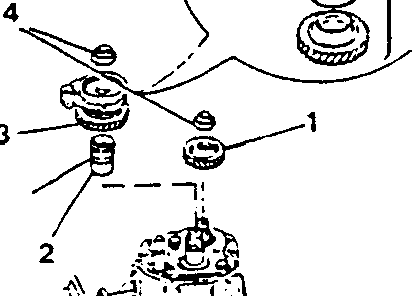

1. Install 5th speed driven gear onto layshaft.
2. Install 5th speed drive gear bushing and roller bearing onto main shaft.
3. Install 5th speed drive gear with synchronizer ring and hub-sliding sleeve assembly with fork and rollers and springs retaining flange.
4. Install ring nuts securing main and lay shaft gears. Perform caulking after tightening.
