Gearbox and differentialBench reassembly · page 3 of 4
  1. Install reverse speed idle gear fork lever.

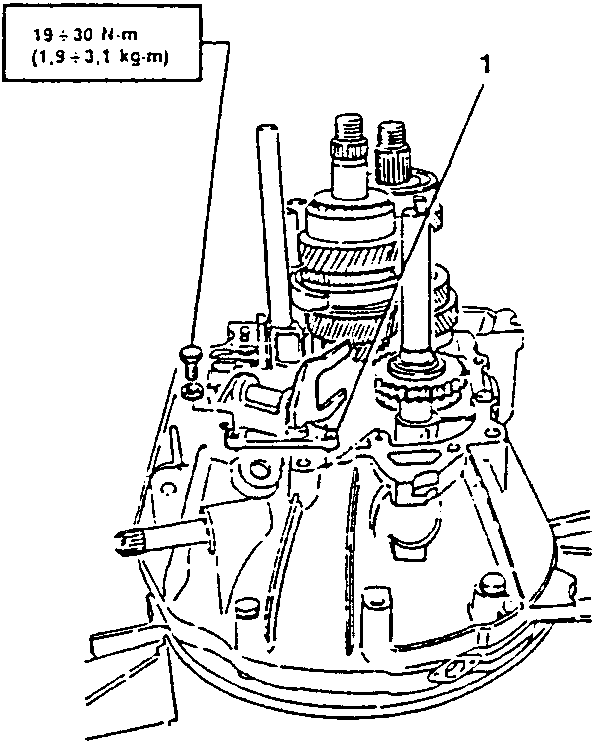

Diagram showing installation of reverse speed idle gear fork lever with torque specification 19÷30 N·m (1.9÷3.1 kg·m)
  1. Install speed control shaft into cover without tightening retaining screws.
Diagram showing installation of speed control shaft into gearbox cover with torque specification 7.9÷9 N·m (0.8÷0.9 kg·m)
Diagram showing gear shift lever component
  1. Install gearbox casing backing speed control shaft to facilitate engagement.

CAUTION: Wipe contact surfaces with sealant.

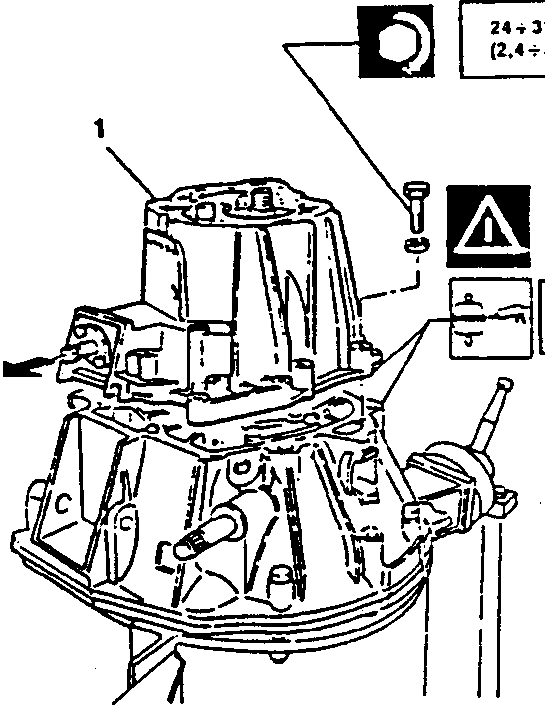

Diagram showing installation of speed control shaft bushing with torque specification 24÷31 N·m (2.4÷3.2 kg·m) and Loctite 573 application
  1. Tighten screws securing speed control shaft bushing.

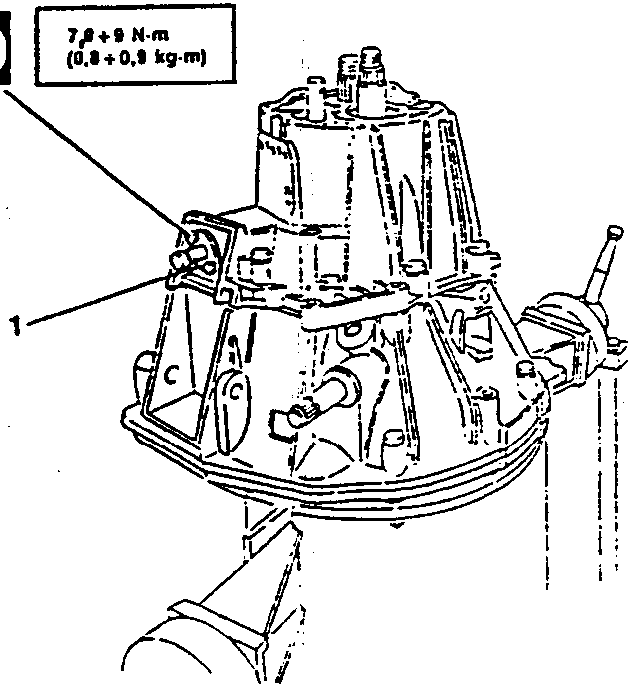

Diagram showing tightening of screws securing speed control shaft bushing with torque specification 7.8÷9 N·m (0.8÷0.9 kg·m)
