Gearbox and differentialBench reassembly · page 2 of 4

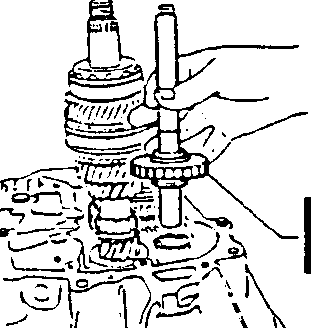

  1. Install reverse speed shaft and idle gear.

CAUTION: Ensure gear engagement toothing faces downwards.

Diagram showing installation of reverse speed shaft and idle gear with safety pawl
Close-up view of the gear engagement area

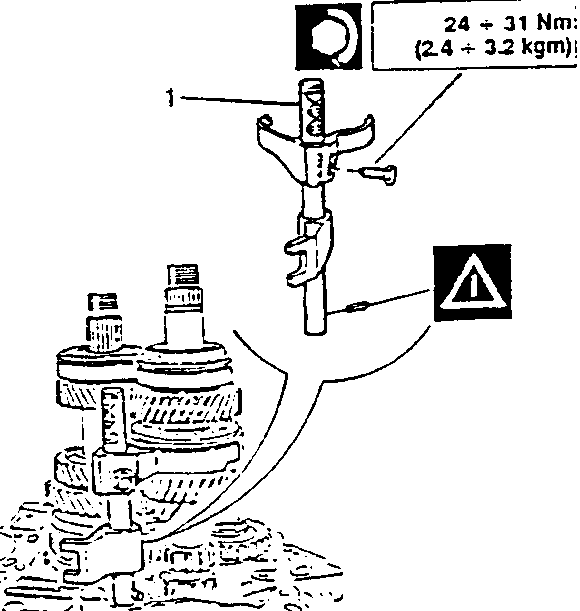

  1. Install 3rd and 4th speed rod, fork and prong.

CAUTION: Before installing rod, install safety pawl into rod.

Diagram showing installation of 3rd and 4th speed rod, fork and prong with torque specification

24 ÷ 31 Nm
2.4 ÷ 3.2 kgm

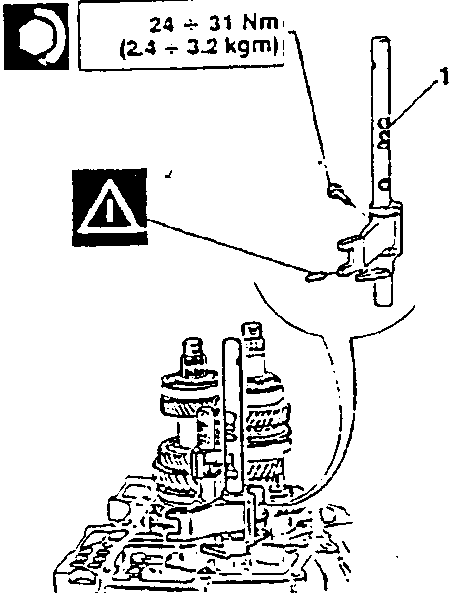

  1. Install 5th and reverse speed rod and control prong.

CAUTION: Before installing prong, install safety pawl into prong.

Diagram showing installation of 5th and reverse speed rod and control prong with torque specification

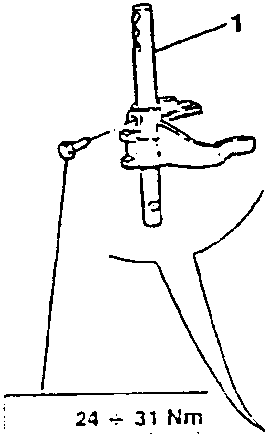

  1. Install 1st and 2nd speed rod and fork. Move 3rd and 4th speed control rod to facilitate installation.
Diagram showing installation of 1st and 2nd speed rod and fork
Close-up view of the 1st and 2nd speed rod and fork installation
