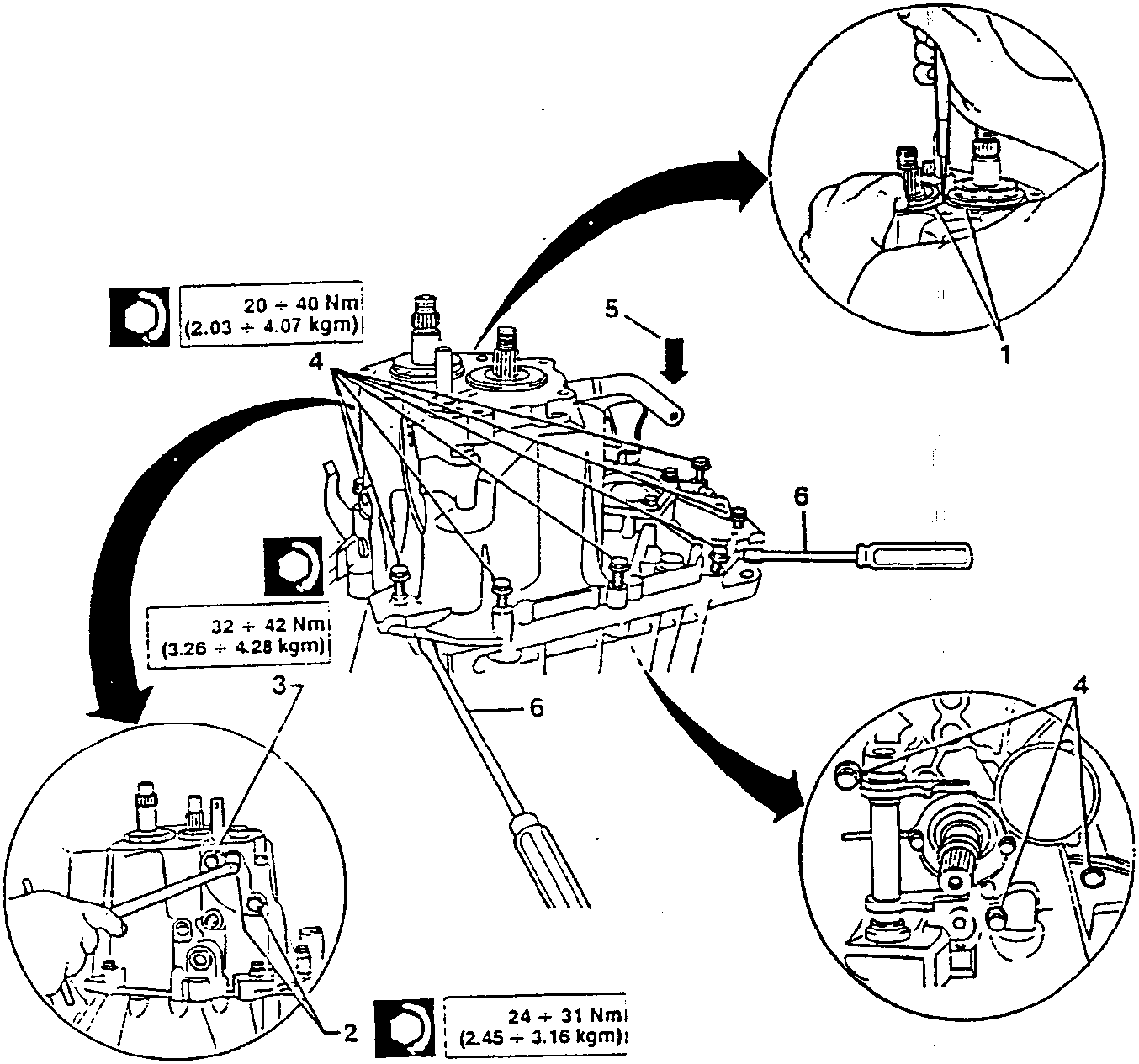

1. Remove the flexible retaining rings securing the rear bearings.
2. Remove the retaining caps and withdraw the speed control rod positioning springs and balls.
3. Unscrew the reverse speed shaft retaining screw.
4. Unscrew the thirteen screws (three of which are inside the support union) securing the gearbox to the engine-gearbox support union.
5. Push the clutch engagement control lever downward as indicated in the illustration.
6. Acting on the special lugs, lift the gearbox and remove it using two screw-drivers as levers.

20 ÷ 40 Nm
(2.03 ÷ 4.07 kgm)

32 ÷ 42 Nm
(3.26 ÷ 4.28 kgm)

24 ÷ 31 Nm
(2.45 ÷ 3.16 kgm)
