Loctite 573 (page 4 of 6)

1. Unscrew the two retaining screws and remove the bracket supporting the reverse speed fork.
2. Remove the reverse speed idle gear and rod.

10 - 12 Nm
(1.01 - 1.22 kgm)

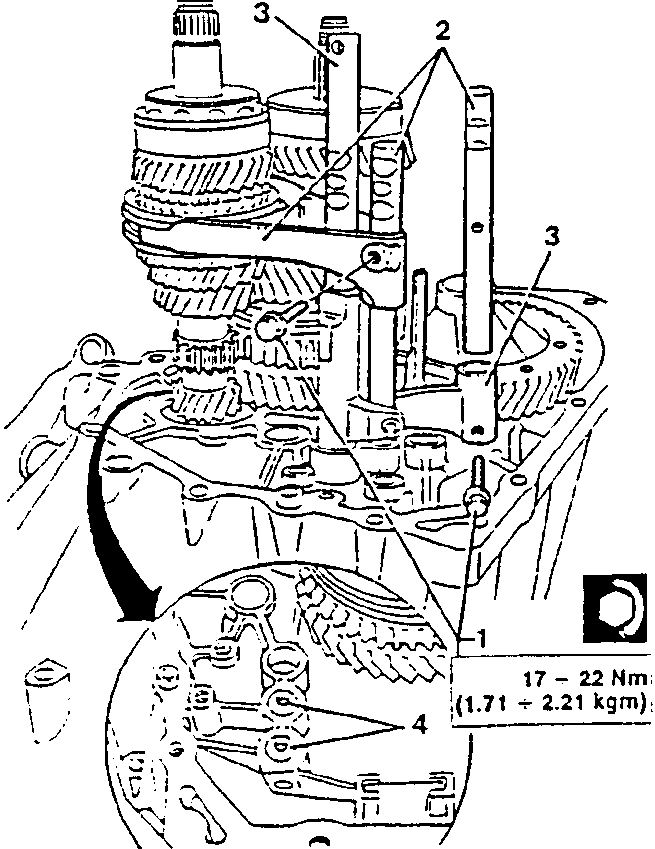

1. Unscrew the screws securing the 1st-2nd and 3rd-4th speed control forks.
2. Extract the following from their housings: 1st-2nd speed control rod together with the relative fork and the 3rd-4th speed control rod.
3. Remove the 5th-reverse speed control rod and the 3rd-4th speed fork.
4. Remove the speed engagement safety pawls.

17 - 22 Nm
(1.71 ÷ 2.21 kgm)

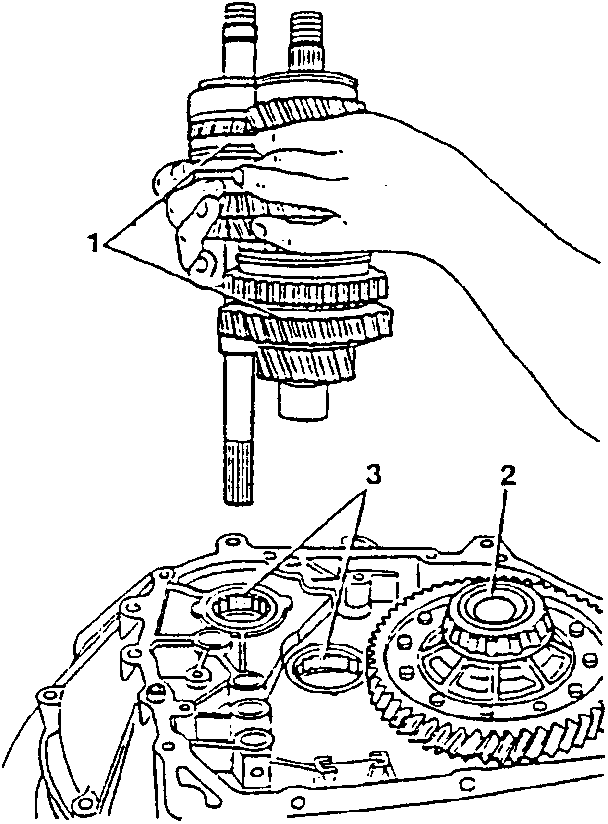

1. Withdraw the main and layshaft assemblies.
2. Remove the differential assembly.
3. Remove the main and layshaft front bearings from their seatings.
