Layshaft reassembly (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Layshaft reassembly
Gearbox and differentialLayshaft reassembly · page 2 of 2
- Install the spacer.

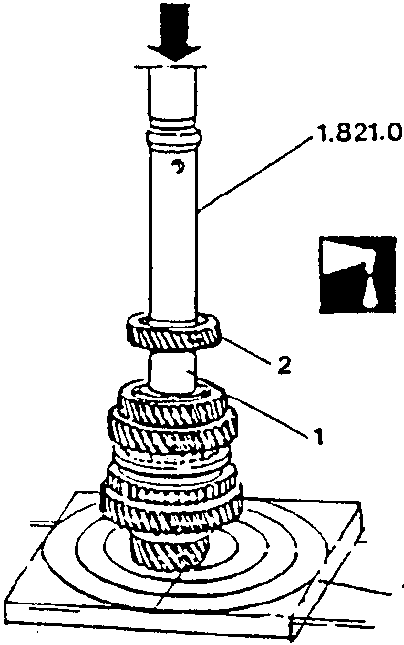

- Using a press, half plates No. 1.820.022.000 and inserting tool No. 1.821.092.000, install the 4th speed driven gear.

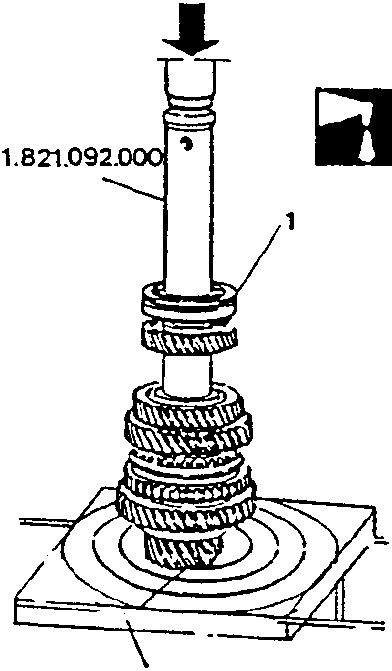

- Using a press, half plates No. 1.820.022.000 and inserting tool No. 1.821.092.000, install the rear bearing.
