BENCH REASSEMBLY

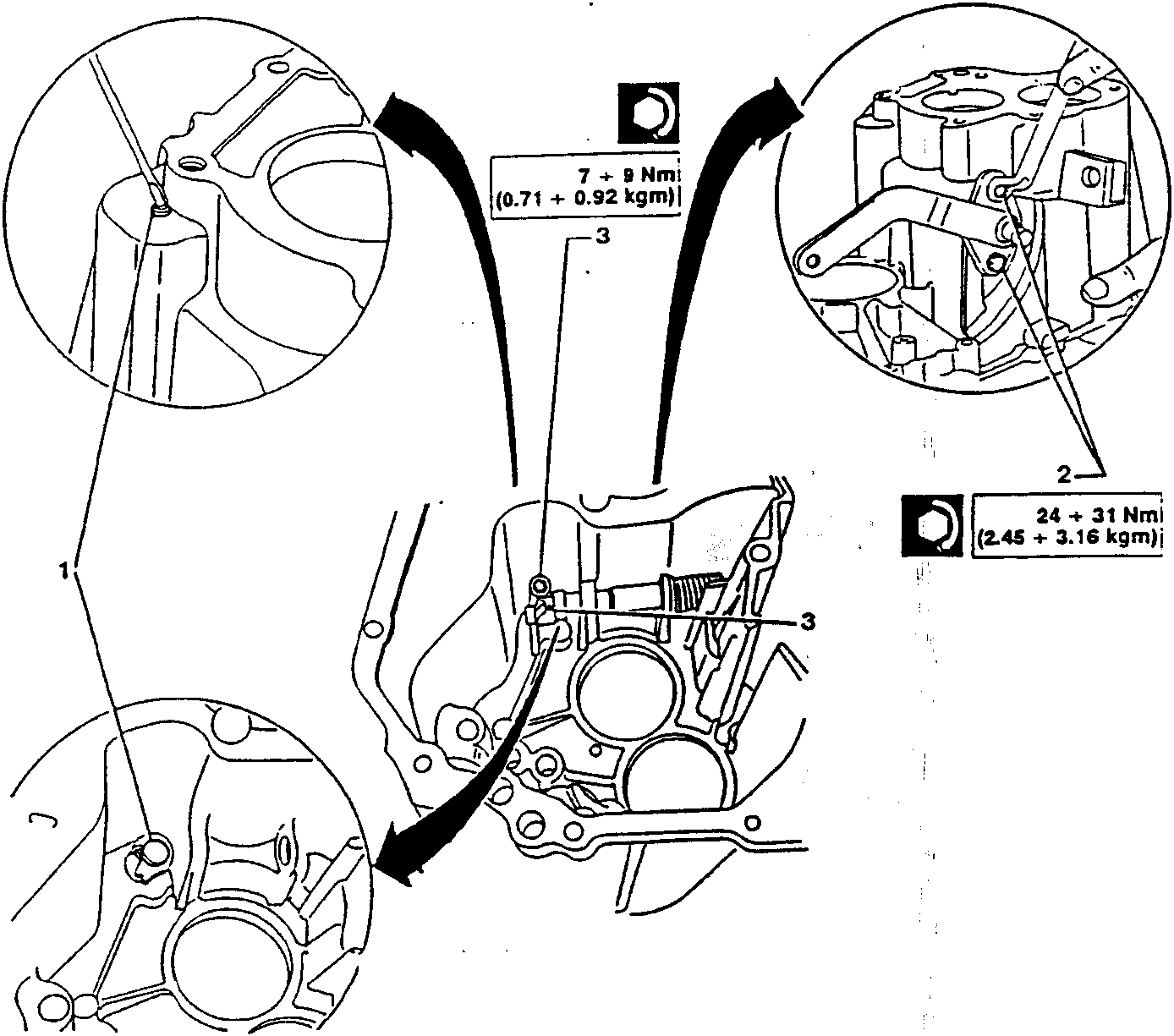

- If previously removed, install a new guide pin for the engagement of reverse gear and caulk the outer tip.
- Install the speed control lever, securing it to the gearbox using the two screws which should then be tighten to the prescribed torque.
- install the speed control prong by inserting the relative securing pin and tightening the screw to the prescribed torque.
- part name
- part name
- part name
7 ÷ 9 Nm
(0.71 ÷ 0.92 kgm)
24 ÷ 31 Nm
(2.45 ÷ 3.16 kgm)
