Bench reassembly (page 3 of 7)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Bench reassembly
Gearbox and differentialBench reassembly · page 3 of 7

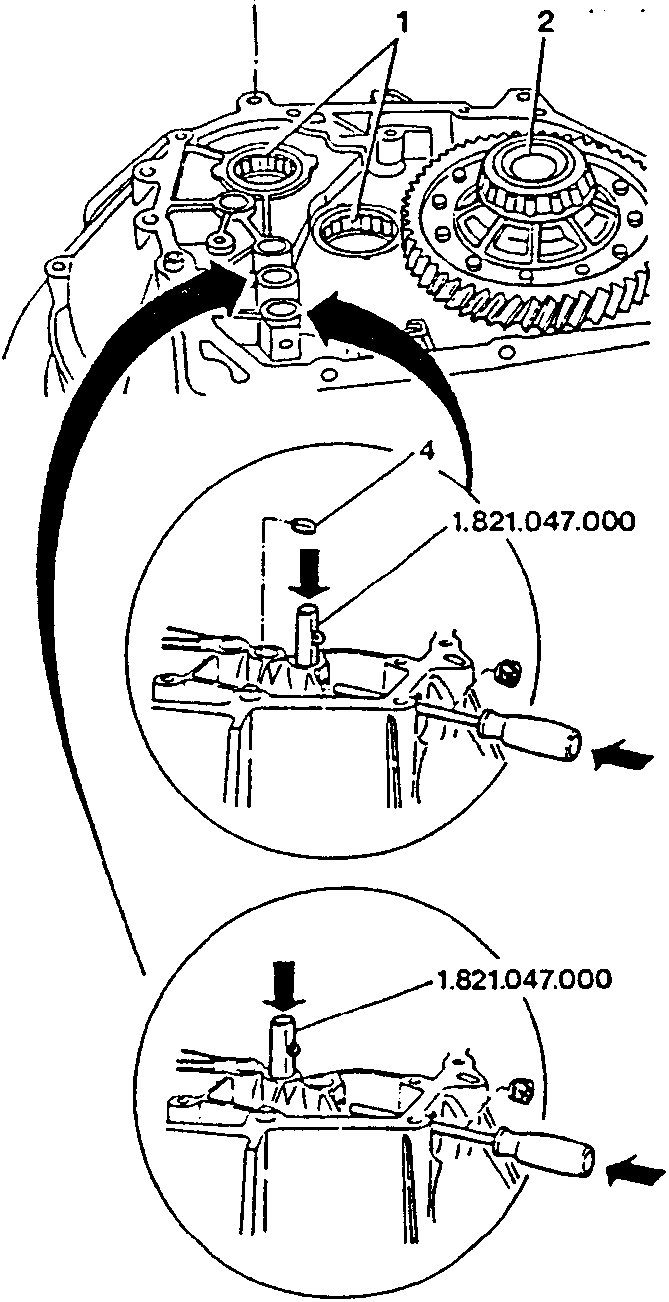

- Install the main and lay shaft front bearings.
The bearings must be replaced if they show signs of scoring or excessive play or wear. - Install the differential assembly
- Insert the main and lay shafts.

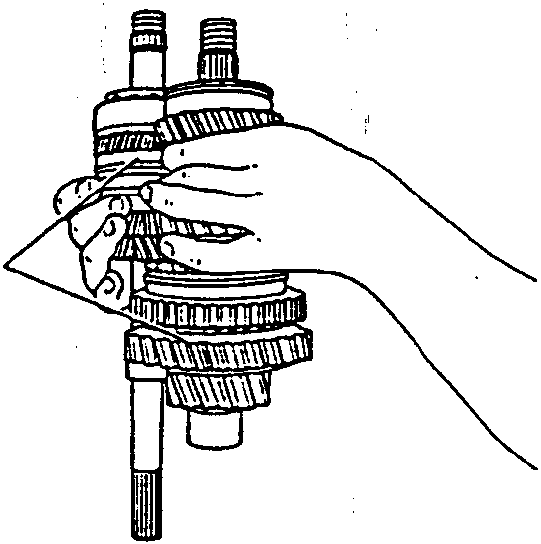

- Insert the speed engagement safety pawls using tool No. 1.821.047.000.
