Bench reassembly (page 2 of 7)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Bench reassembly

Gearbox and differentialBench reassembly · page 2 of 7

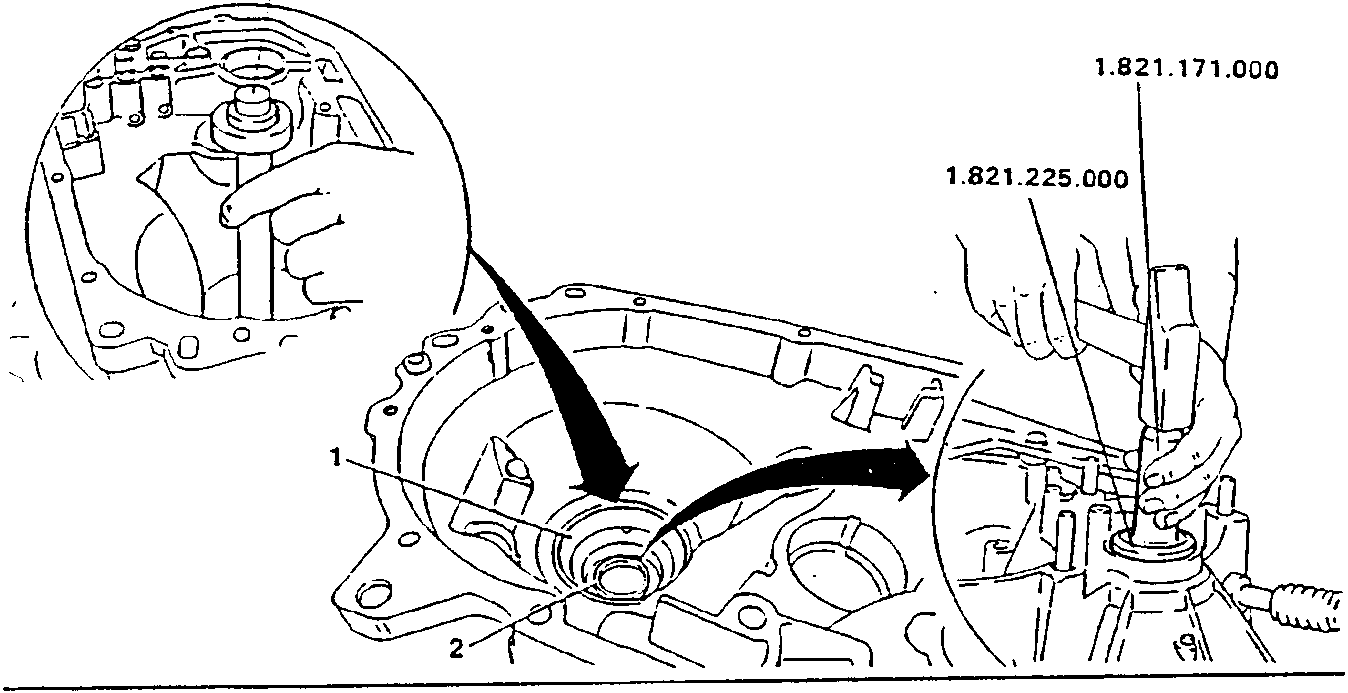

1. If previously removed, install the new differential casing oil seal using tools No. 1.821.171.000 and No. 1.821.225.000.
2. If previously removed, insert the new outer race of the differential support roller bearing using tool No. 1.821.028.000.

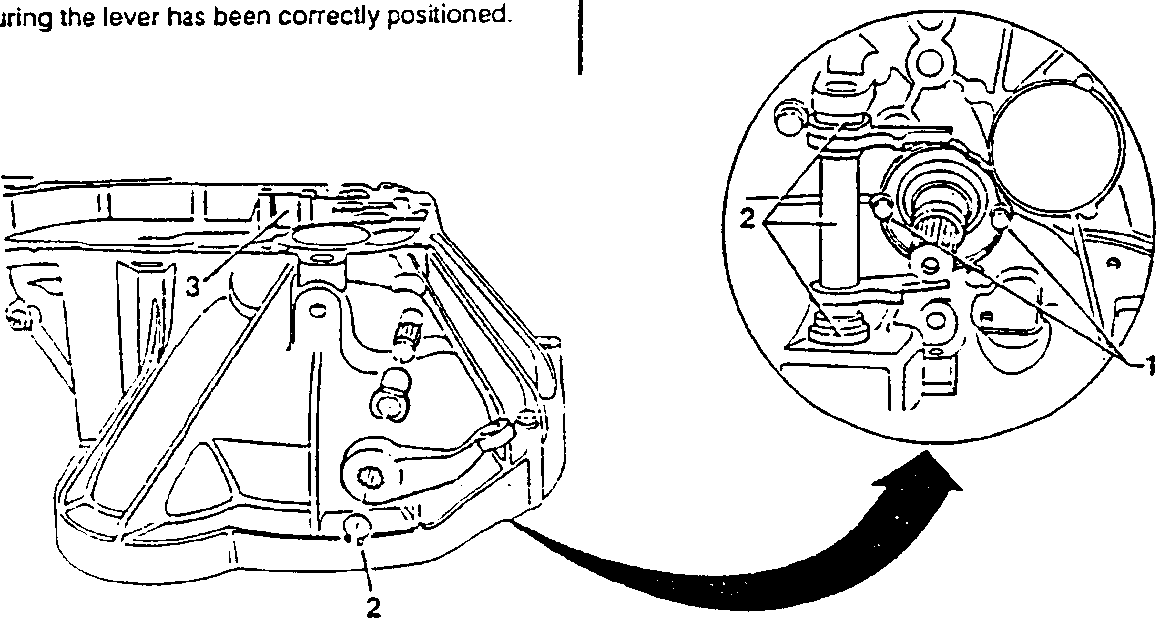

1. Install the thrust bearing sleeve and tighten the screws to the prescribed torque.
2. Install the pin and relative bushings, the thrust bearing engagement control fork, and the clutch engagement control lever, ensuring that the Seeger ring securing the lever has been correctly positioned.
3. Install the magnet

51 Transmission
