Bench reassembly (page 6 of 7)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Bench reassembly

Gearbox and differentialBench reassembly · page 6 of 7

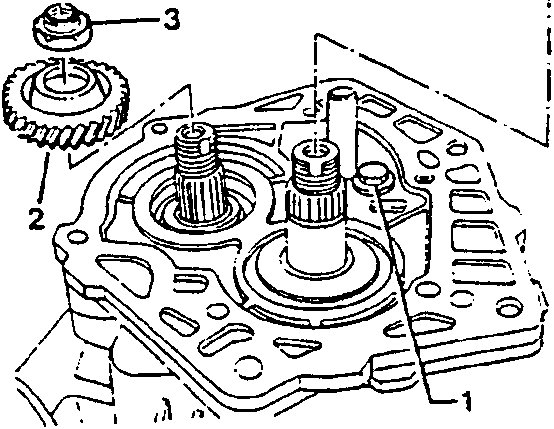

1. Tighten the rear bearings retaining plate screws to the prescribed torque.

CAUTION: Before installing the gearbox, wipe the contact surfaces with "LOCTITE 573" flat surface sealant.

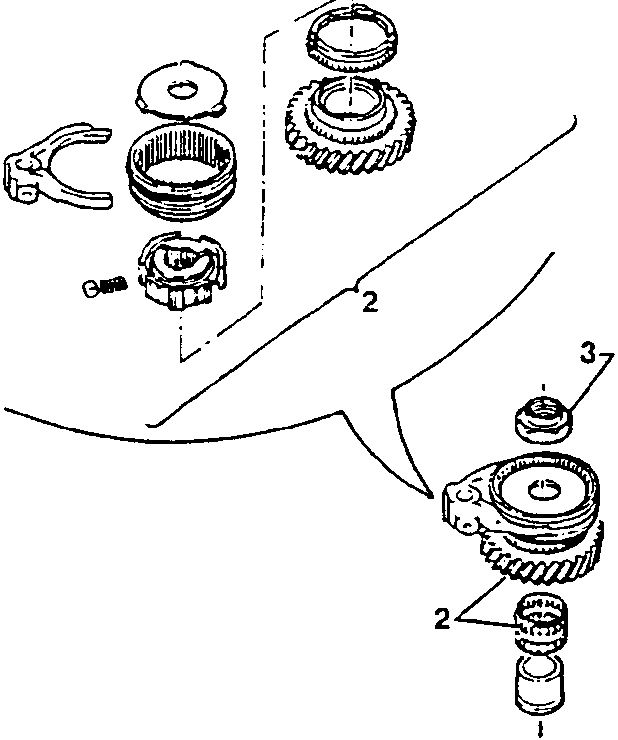

2. Position the hub, fork, sleeve and 5th speed gear on the main and lay shafts.
3. Tighten to the prescribed torque and then caulk the main and lay shaft locking ring nuts.

CAUTION: The ring nuts securing the gears must be substituted each time they are removed.

51 Transmission
