Bench reassembly (page 5 of 7)

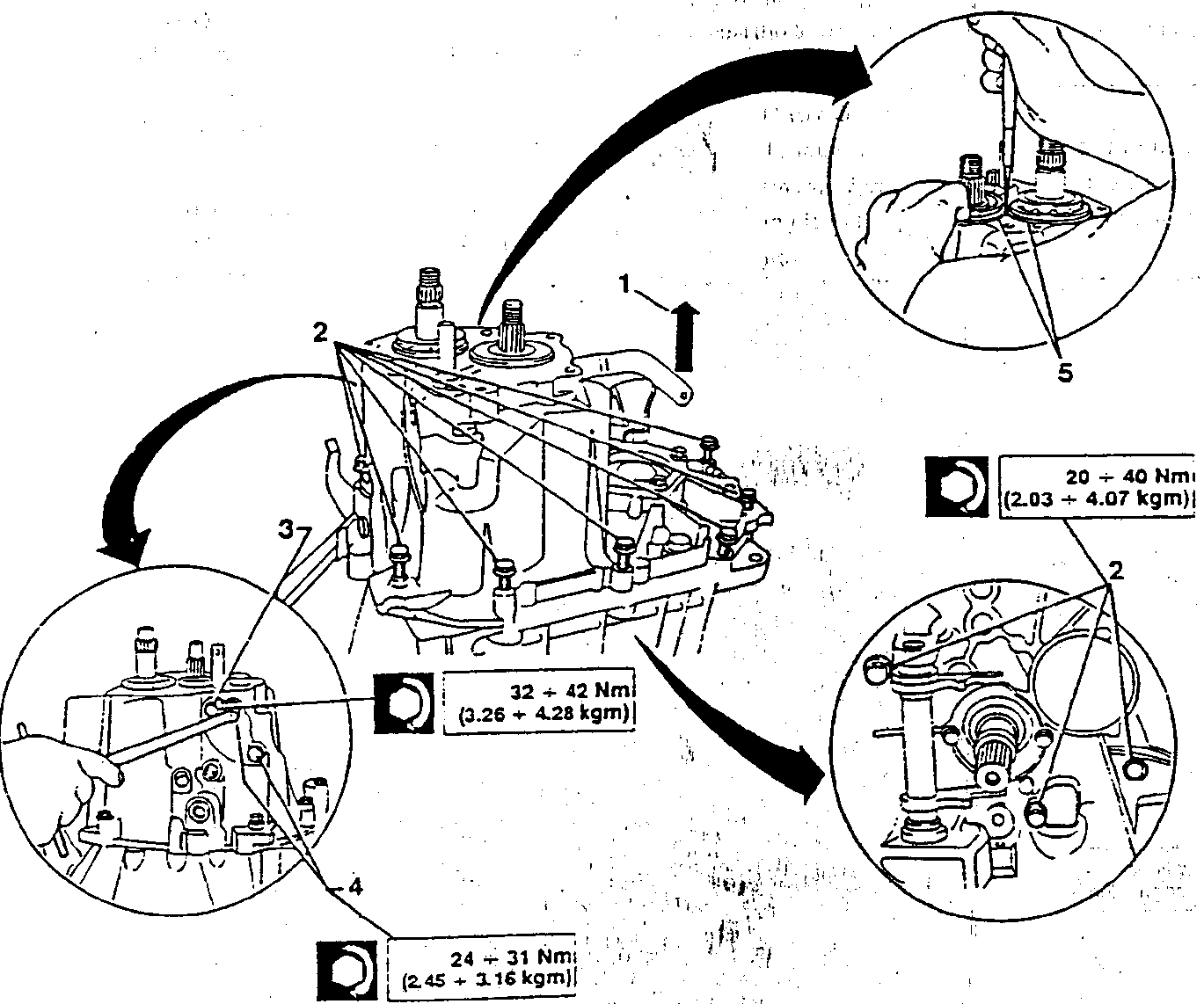

1. Holding up the gear selector lever, install the gearbox checking that the gear selector prong is inserted in the 3rd - 4th speed fork.

CAUTION: Before installing the gearbox, wipe the contact surfaces with "LOCTITE 537" flat surface sealant.

2. Tighten the thirteen the screws to the prescribed torque, three of which are located inside the gear-box-engine support union.
3. Insert the speed control rod idle positioning balls and springs and tighten the caps to the prescribed torque.
4. Tighten to the prescribed torque, the screws securing the reverse speed shaft.
5. Install the flexible rings securing the rear bearings.

CAUTION: To facilitate the installation of the flexible rings, adjust them so that the frontal opening is in the position shown in the illustration.

1. Part 1
2. Part 2
3. Part 3
4. Part 4
5. Part 5

32 ÷ 42 Nm
(3.26 ÷ 4.28 kgm)

24 ÷ 31 Nm
(2.45 ÷ 3.16 kgm)

20 ÷ 40 Nm
(2.03 ÷ 4.07 kgm)
