DESCRIPTION

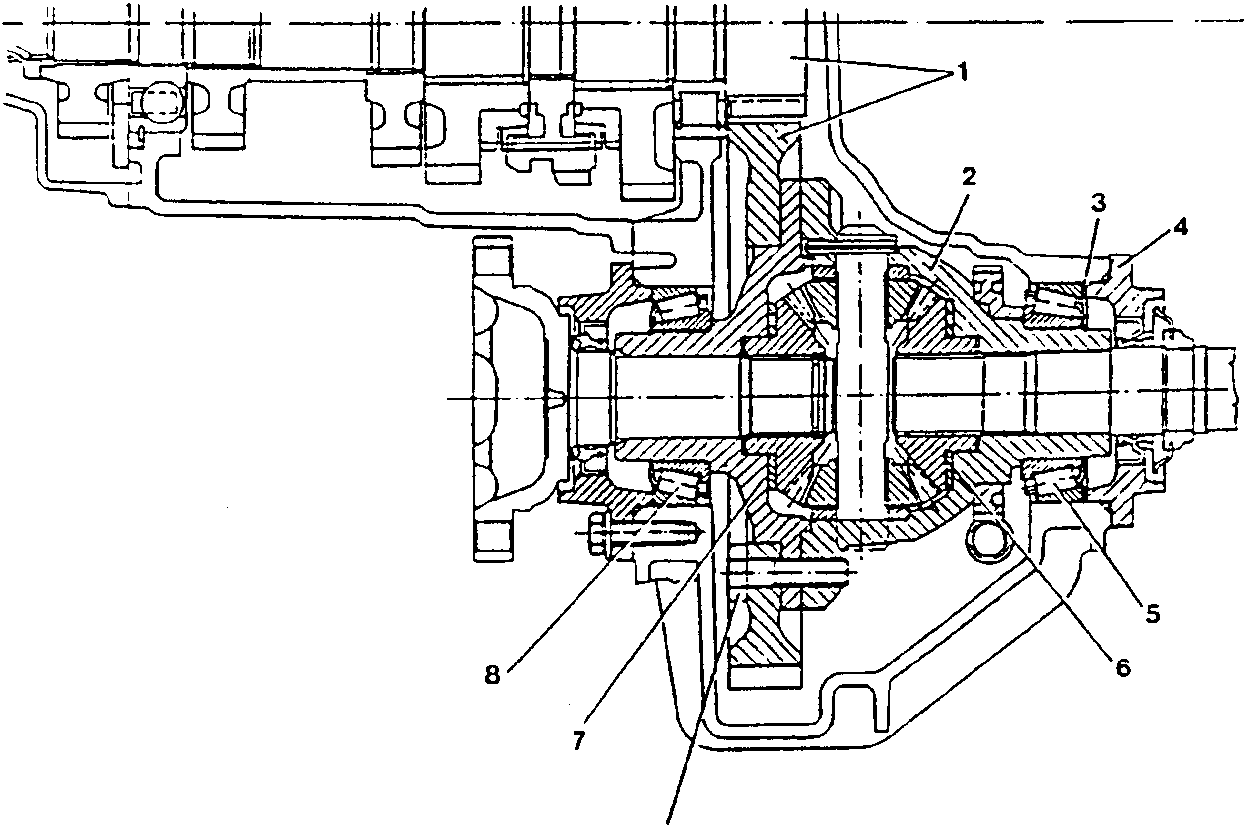

The differential consists of a reduction pair (1) and a differential casing (2) including crown wheels and side pinions. The differential casing is supported by two taper bearings (5 and 8) and is divided into two sections united by the same screws (9) securing the cylindrical crown gear. The odometer gear, made of teflon, is installed on the outer surface of the casing. The backlash between crown wheels and side pinions is determined using variable thickness rings (6 and 7) placed below the crown wheels. The pre-load adjustment system of the differential taper bearings is similar to that of other known groups, and is obtained using variable thickness rings (3) located below the relevant seal cover (4).
- Cylindrical reduction pair
- Differential casing
- Ring
- Seal cover
- Taper bearing
- Ring
- Ring
- Taper bearing
- Differential casing half retaining screws
