Bench reassembly (page 7 of 7)

1. Tighten the screws securing the 5th speed engagement fork to the main shaft.
2. Position the rear gearbox cover and tighten the retaining screws.

CAUTION: Before installing the rear gearbox cover, wipe the contact surfaces with "LOCTITE 573" flat surface sealant.

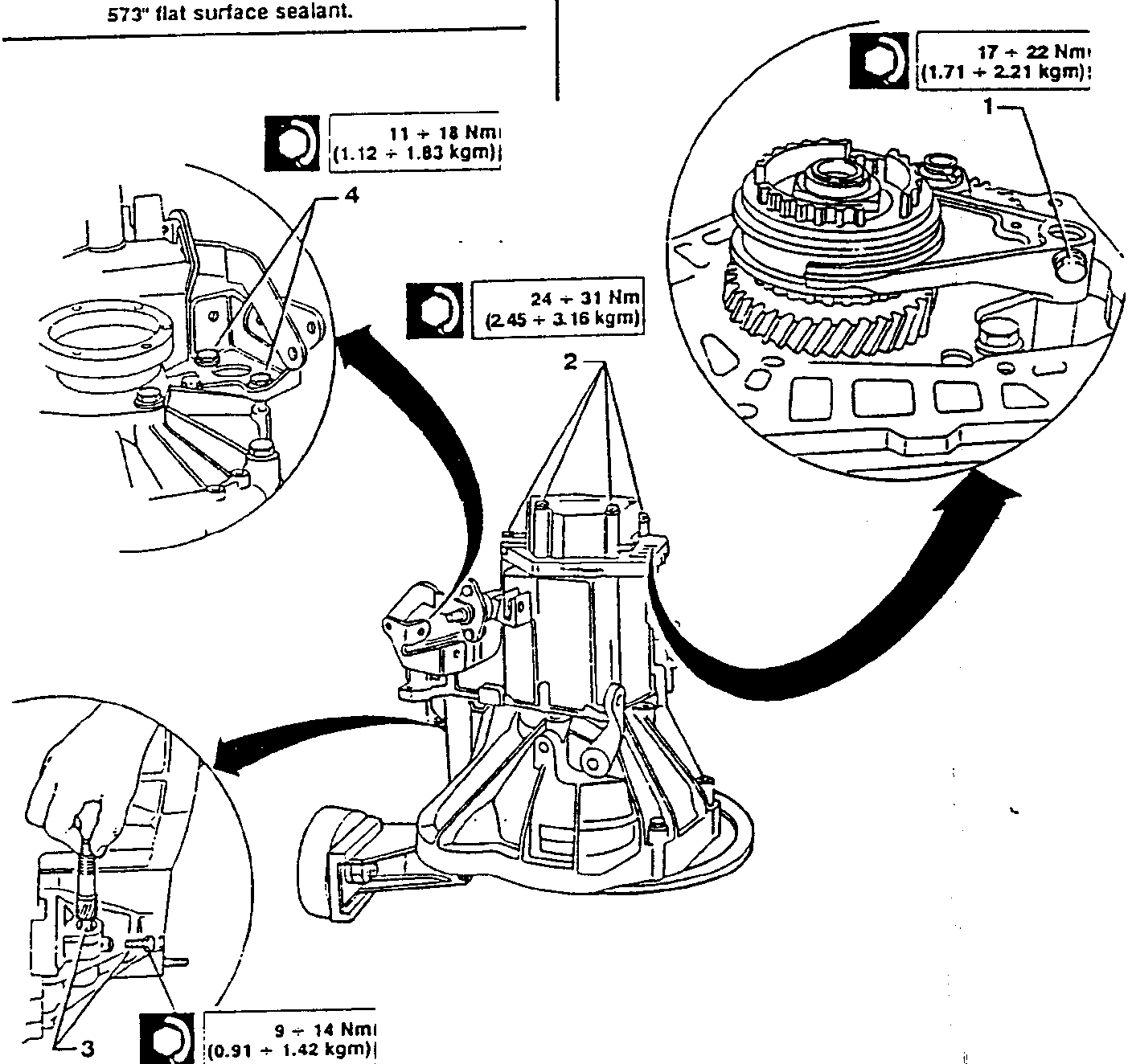

1. Install the odometer idling gear and tighten it to the prescribed torque.
2. Install the bracket supporting the gear engagement device and tighten the screws to the prescribed torque.

17 ÷ 22 Nm
(1.71 ÷ 2.21 kgm)

11 ÷ 18 Nm
(1.12 ÷ 1.83 kgm)

24 ÷ 31 Nm
(2.45 ÷ 3.16 kgm)

9 ÷ 14 Nm
(0.91 ÷ 1.42 kgm)
