Bench reassembly (page 4 of 7)

1. Install the reverse speed idle gear.

CAUTION: Ensure that the gear engagement toothing faces downwards.

2. Install 5th and reverse speed control rod.
3. Position the 3rd and 4th speed fork and install the relative control rod.

CAUTION: Position the safety pawl on the rod before installing the rod in its seating.

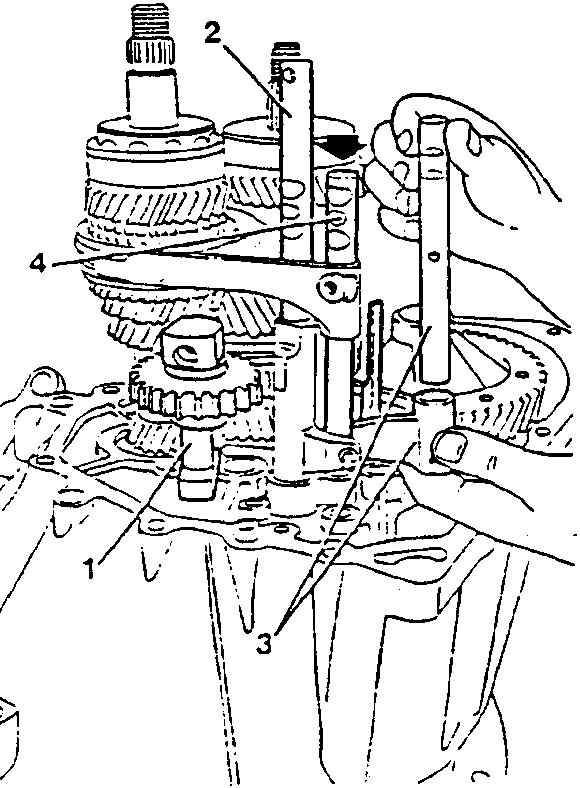

4. Install 1st and 2nd speed control rod and fork. To facilitate installation, move the 3rd and 4th speed control rod as shown in the illustration.

1. part name
2. part name
3. part name
4. part name

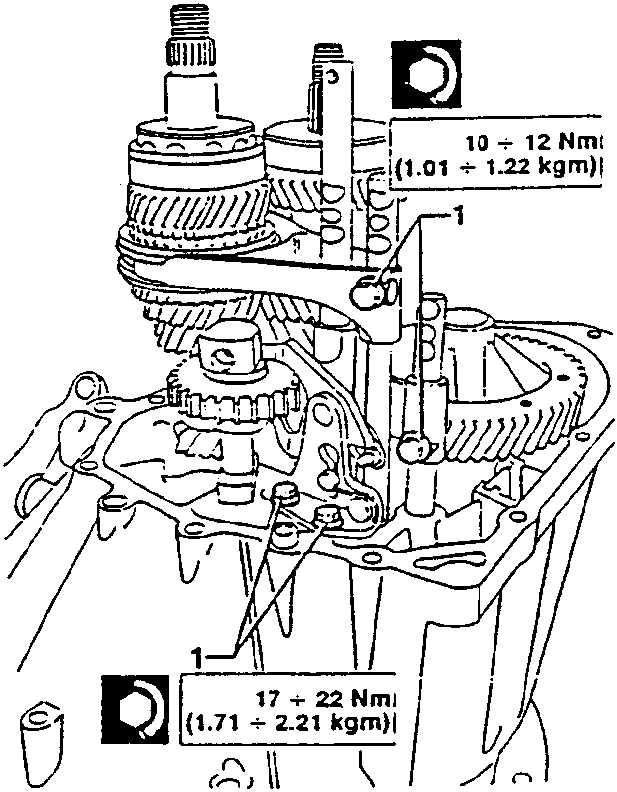

1. Tighten to the prescribed torque, the screws securing the gear control forks and bracket supporting the reverse speed fork. Move all forks to the idle position.

10 ÷ 12 Nm
(1.01 ÷ 1.22 kgm)

17 ÷ 22 Nm
(1.71 ÷ 2.21 kgm)
