Alfa Romeo 155 Factory Service Manual (1992-1998)51 · Gearbox and differential
51 · Transmission

(cable version)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Removal and installation › (cable version)
Gearbox and differential(cable version) · page 1 of 2

(cable version)

  • Operating inside the vehicle remove the central console (see: REPAIR MANUAL - BODY - GR. 75 - CENTRAL CONSOLE).
  1. Unscrew the screws securing the central support to the body located near the rear air vent.

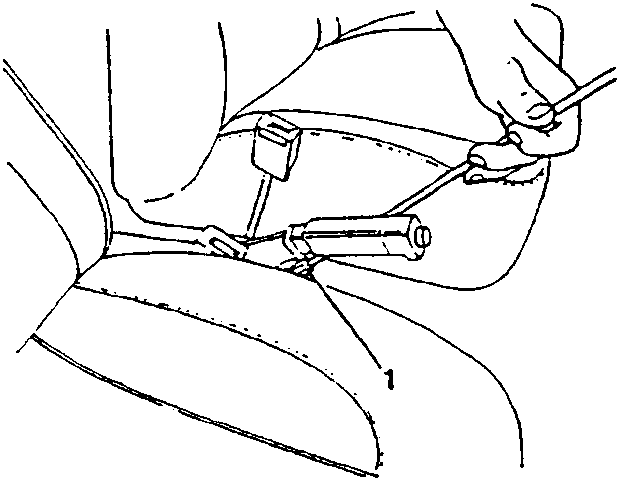

Handbrake control cable adjustment nut under lever
  1. Unscrew the handbrake control cable adjustment nut located under the lever.
Handbrake control cable adjustment nut under lever

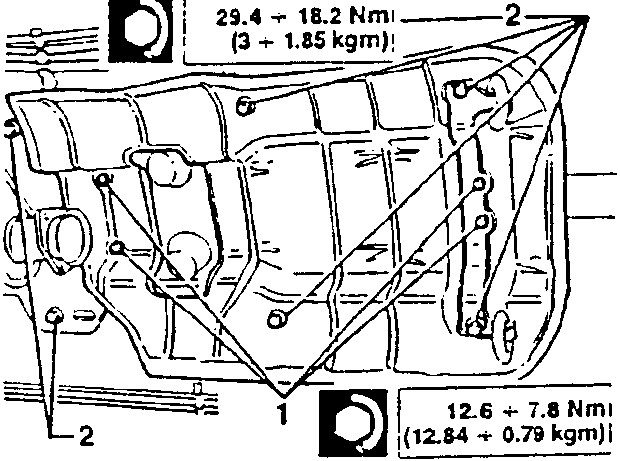

  • Operating under the vehicle, remove the front and central sections of the exhaust system (see: REPAIR MANUAL - ENGINES - GR. 04 - EXHAUST SYSTEM).
  1. (only for versions with catalyzed exhaust system):
  • remove the heat shielding.
Exhaust system removal

29.4 ÷ 18.2 Nm
(3 ÷ 1.85 kgm)

12.6 ÷ 7.8 Nm
(12.84 ÷ 0.79 kgm)

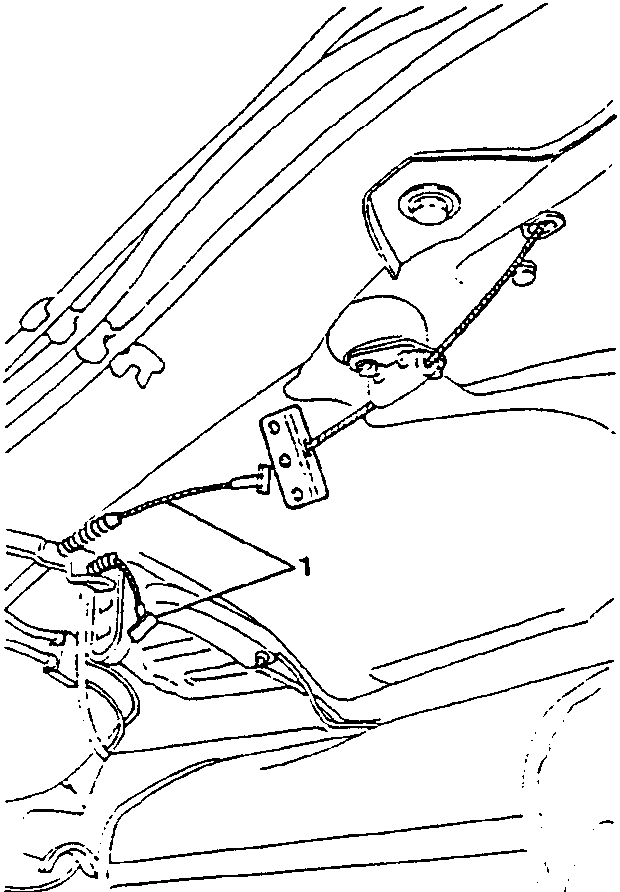

  1. Disconnect the handbrake relay tie-rods from the control bracket.
Handbrake relay tie-rods disconnected
