(cable version) (page 2 of 2)

Operating in the engine compartment, remove the cover-air flow meter assembly (see: REMOVAL AND INSTALLATION).

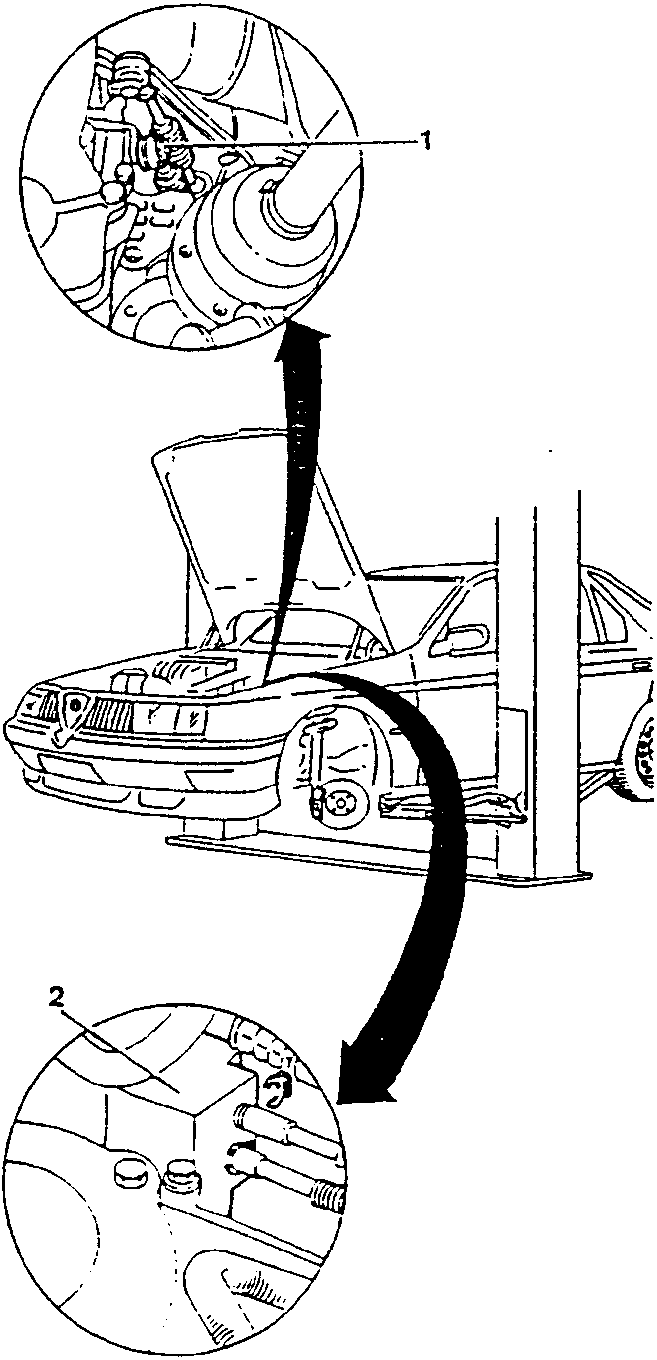

1. Disconnect the clamps securing the gear control cables to the speed engagement device.
2. Remove the checking points securing the speed selection and engagement cables to the supporting bracket and withdraw the cables from the bracket and pulling them through from the underside of the vehicle.
3. Unscrew the screws securing the the central support to the body and remove them together with the cables.

Install by reversing the procedure followed for disassembly taking care that the speed engagement and selection cables are correctly positioned on their relative devices.
