Heating and ventilationRefitting
  1. Press the small clip inwards and remove the vent.

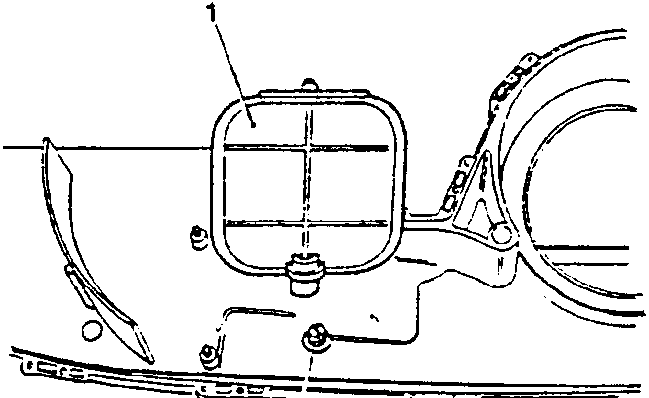

Air mixing vent with clip and screws

Refitting

To refit, reverse the procedure followed for removal.

AIR MIXING VENT

Removal

  • First carry out the removal operations given in paragraph "CONVEYOR ASSEMBLY AND HEATING-DISTRIBUTION UNIT - Removal".
  1. Loosen the four screws securing the conveyor to the heating-distribution unit.
  2. Apply leverage to the tabs.
  3. Loosen the screws and remove the lines.
  4. Disconnect the electrical connectors from the electric fan.
  5. Disconnect the heating-distribution unit from the conveyor.

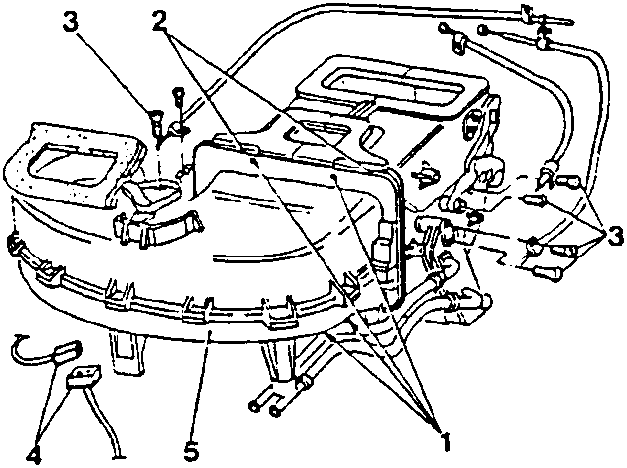

Heating-distribution unit with screws, tabs, and electrical connectors
  1. Loosen the screws securing the two casing halves of the heating-distribution unit and using a thin-bladed screwdriver apply leverage to the tabs.
  2. Separate the two casing halves of the heating-distribution unit.

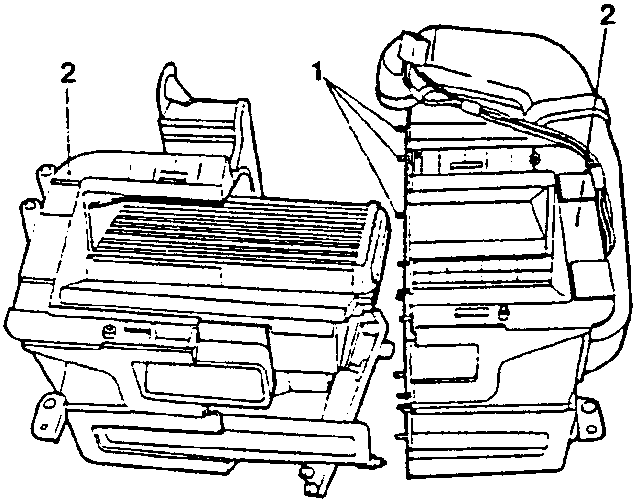

Heating-distribution unit casing halves separated
