Electric fan › Removal
Heating and ventilationRemoval

Removal

  • Working from the compartment under the right-hand part of the dashboard, proceed as follows.
  1. Using a thin-bladed screwdriver raise the retaining tab.
  2. Rotate the rear block of the electric fan a few degrees anticlockwise.
  3. Disconnect the power supply connector from the electric fan.
  4. Remove the complete fan block.

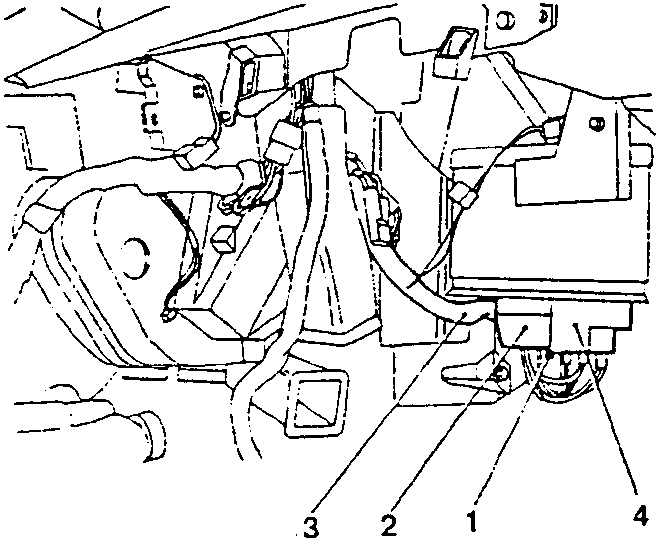

Electric fan removal diagram showing numbered parts 1, 2, 3, 4
1. Using a screwdriver, press on the three rubber tabs on the electric fan and remove the cover.

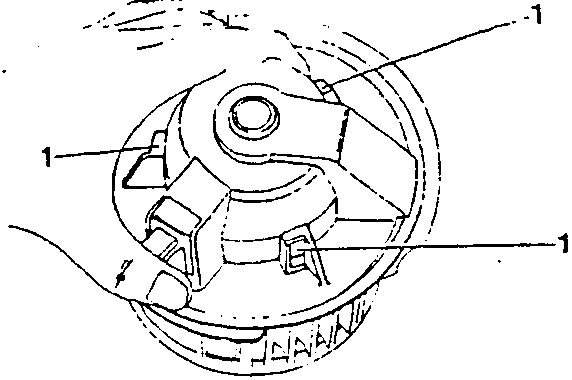

Close-up of electric fan with part 1 indicated

Refitting

To refit, reverse the procedure followed for removal.

EXTERNAL AIR-FLOW REGULATION VENT

Removal

  • First carry out the removal operations given in paragraph "CONVEYOR ASSEMBLY AND HEATING-DISTRIBUTION UNIT - Removal".
  1. Loosen the four screws securing the conveyor to the heating-distribution unit.
  2. Apply leverage to the tabs.
  3. Loosen the screws and remove the lines.
  4. Disconnect the electrical connectors from the electric fan and from the resistor.
  5. Disconnect the conveyor from the heating-distribution unit.

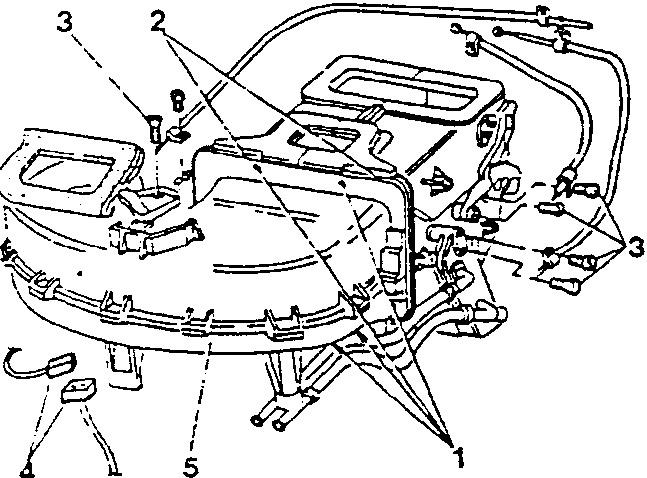

External air-flow regulation vent removal diagram showing numbered parts 1, 2, 3, 4, 5
  1. Using a thin-bladed screwdriver, apply leverage to the tabs and loosen the screws on the two casing halves of the conveyor.
  2. Separate the two casing halves of the conveyor.

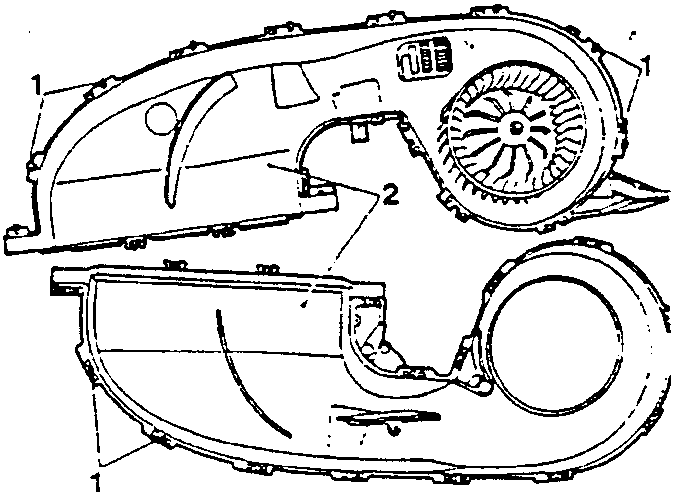

Conveyor casing halves separated showing part 1 and 2
