Compressor (Model 2.4 V6) › Refitting
Heating and ventilationRefitting
  1. Remove the hoses carrying Freon to and from the compressor.

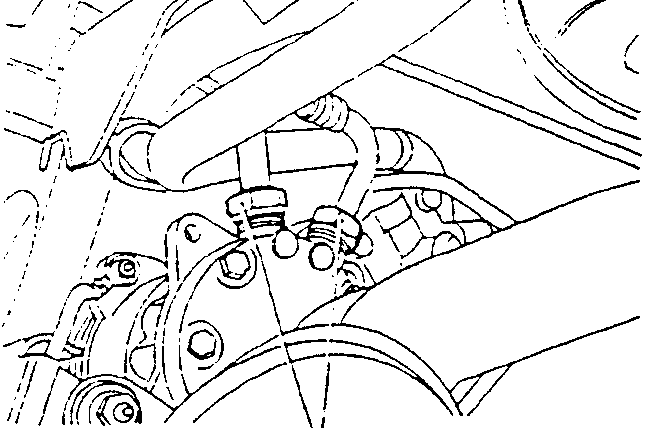

Compressor with hoses connected

50 ÷ 61 Nm
(5.1 ÷ 6.2 kgm)

  1. Disconnect the earth cables, loosen the screws on the protection bracket and remove the bracket. Disconnect the connector from the power supply cable.

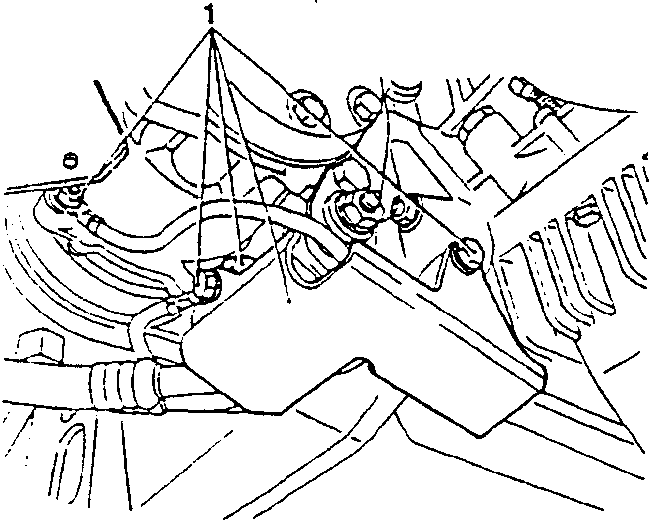

Protection bracket with earth cables
  1. Loosen the screws securing the compressor to its support.
  2. Remove the compressor.

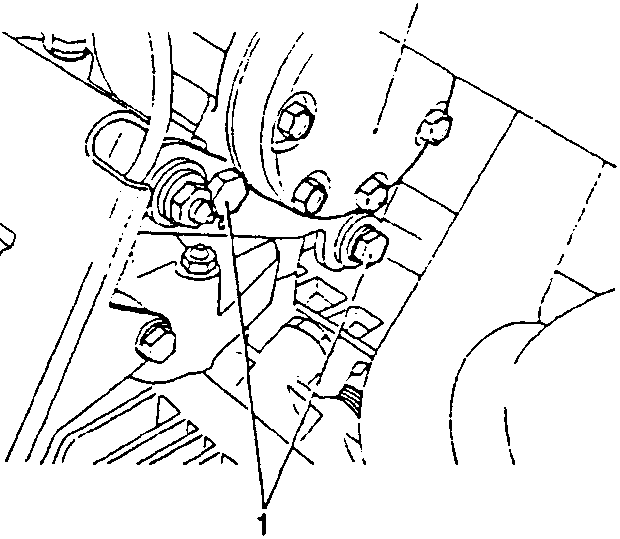

Compressor with mounting screws

Refitting

To refit, reverse the procedure followed for removal.

Supplementary Indications regarding refitting

  • When refitting tighten the nut to the correct torque.
