CONDENSER

Removal

  • With the vehicle on a lift, unscrew the two hoses carrying Freon to and from the condenser.
  • Loosen the lower screws securing the bumper to the chassis (see GROUP 75).
  • Loosen the upper screws securing the bumper to the chassis (see GROUP 75).
  1. Remove the bumper.
  2. Loosen the screws securing the grill to the chassis.

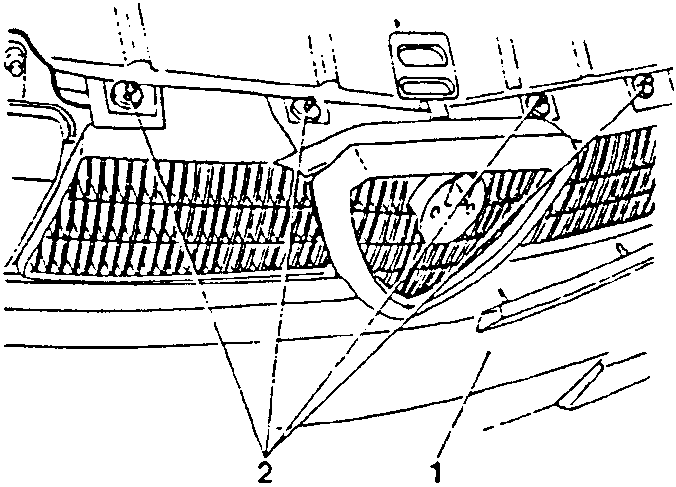

Front view of car grille and bumper area showing screws and components
  1. Loosen the two lower screws securing the condenser to the engine coolant radiator.

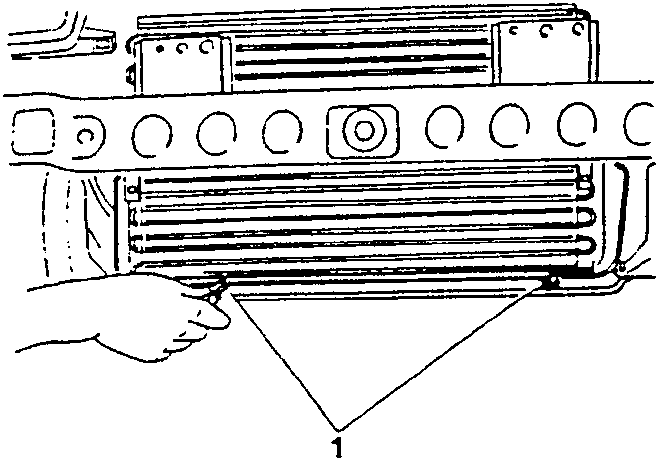

Close-up of condenser being detached from radiator with hand shown
  1. Loosen the two upper screws (complete with rubber washers) securing the radiator to the chassis.

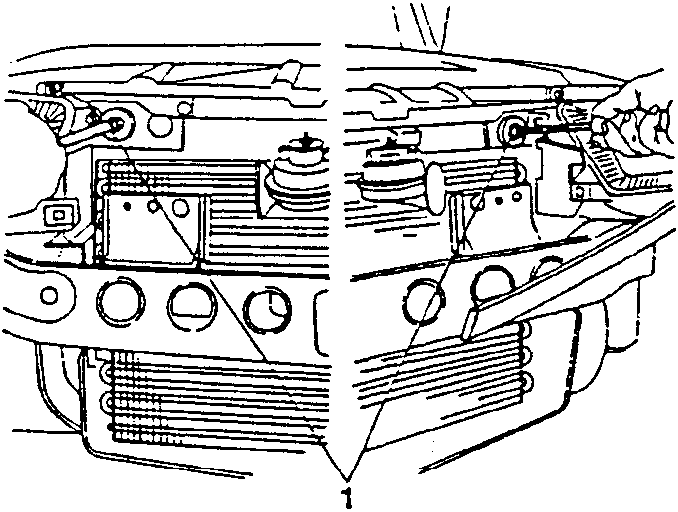

Radiator secured to chassis with upper screws
  1. Loosen the screws securing the spacer to the radiator.

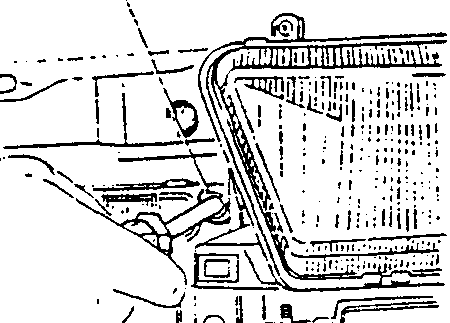

Spacer being loosened from radiator

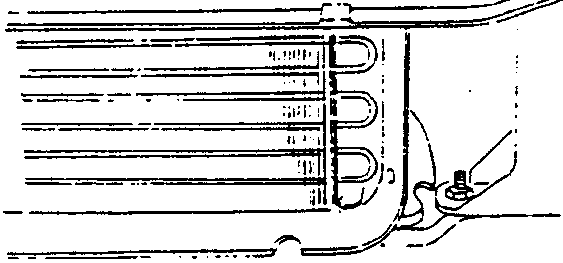

Illustrates radiator core and mounting bracket assembly
