Heating and ventilationRefitting

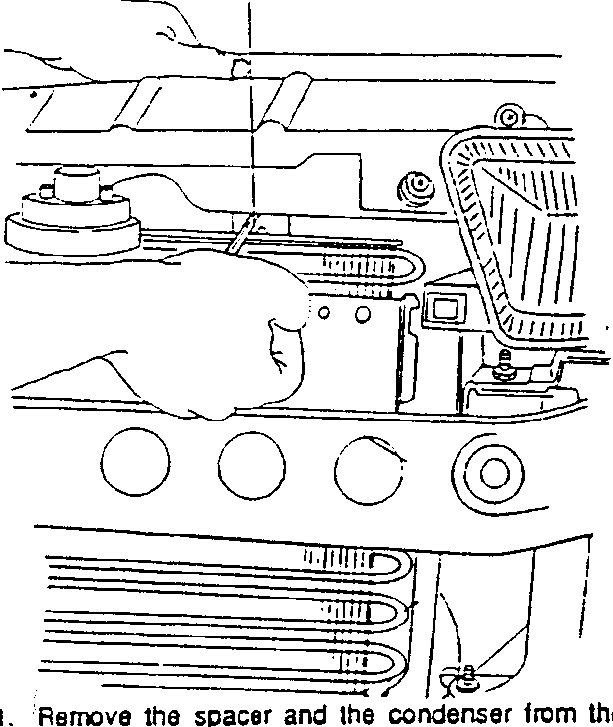

  1. Loosen the upper screws securing the condenser to the radiator.
Diagram showing hands loosening screws on a condenser attached to a radiator, with text below reading 'Remove the spacer and the condenser from the underside of the vehicle.'

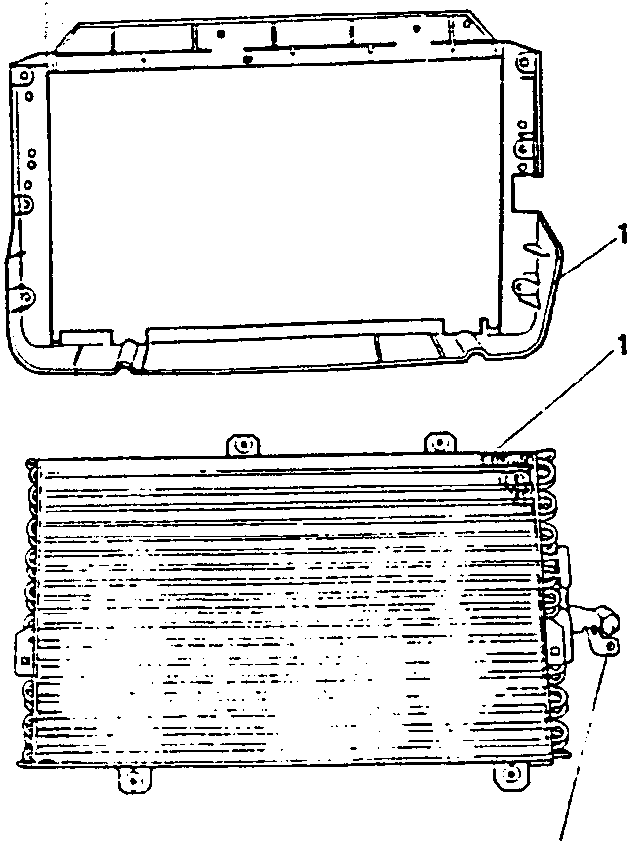

Diagram showing a rectangular frame (spacer) and a radiator (condenser) with two bolts indicated by lines pointing to them.

19 - 23 Nm
(1.9 - 2.3 kgm)

Refitting

To refit, reverse the procedure followed for removal.

Supplementary indications regarding refitting

  • Tighten the connections to the correct torque.
