Heating and ventilationDisassembly
Disassembly

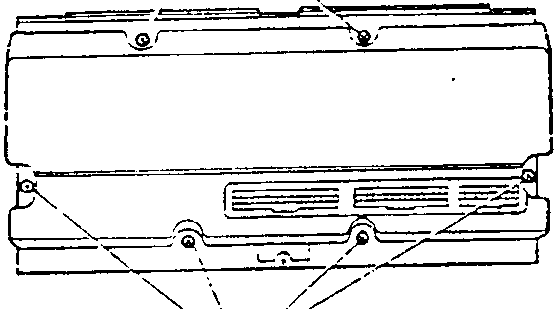

- Loosen the screws securing the rear cover.
- Tip the first printed circuit outwards.

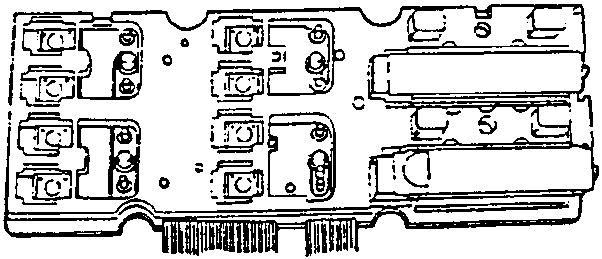

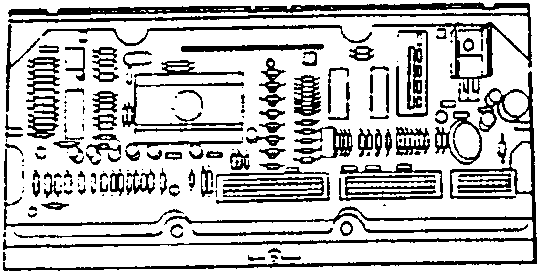

- Loosen the screws securing the second printed circuit to the control unit moulding.
- Remove the two printed circuits from the control unit moulding.

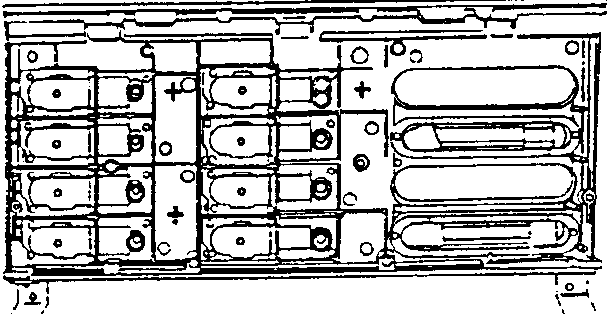

Reassembling the electronic control unit
To reassemble, reverse the procedure followed for disassembly.
